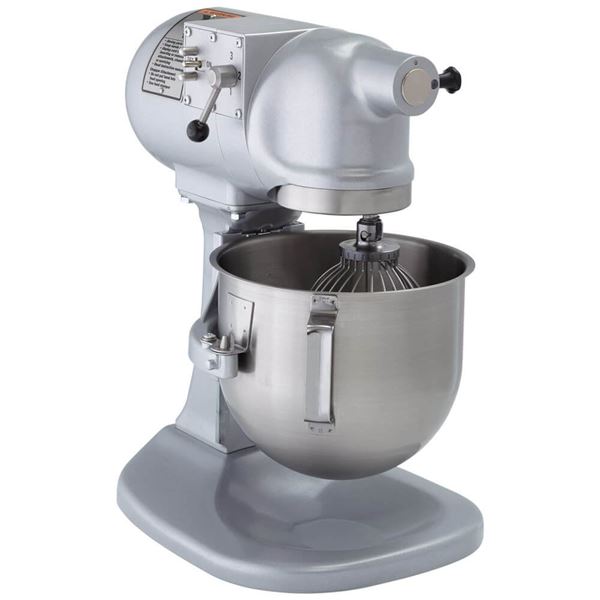

5qt Laboratory Mixer

These Laboratory Mixers have a capacity of 5qt (4.7L) with a 1/6hp motor and selectable operating speeds of 139, 285, and 591rpm. They are constructed of durable metal and have heavy-duty motors with direct gear drives to assure constant mixing speeds under load. These industrial-grade lab mixers have a planetary action for thorough mixing and blending of materials. Mixers assure repeatable specification mixing of cement, mortar, grout, and asphalt samples in the lab.

Locking hand-lever raises and lowers bowl. Mixers are supplied with stainless steel bowl, wire whip, dough hook, aluminum flat beater, and a 6ft (1.8m) power cord.

MA-52 includes an additional heavy-duty stainless steel flat beater. The MAA-30A Adjustment Bracket can be purchased separately to meet the requirements of ASTM C305, C227, and C109 (AASHTO T 162 and T 106) and mortar and cement tests.

MA-52X includes an additional heavy-duty stainless steel flat beater. This mixer is factory modified with an included MAA-30A Bracket to meet the requirements of ASTM C305, C227, and C109 (AASHTO T 162 and T 106) and certain other tests for mortar and cement.

Features:

• Optimal for specification mixing of cement, asphalt, and grout batches in a lab setting
• Selectable operating speeds so you can mix at a rate that suits your application
• Compliant with ASTM C305, C227, and C109 (AASHTO T 162 and T 106) and other tests for mortar and cement
• Locking hand lever easily raises and lowers the bowl

Included Items:

• 5qt Laboratory Mixer with or without ASTM modification bracket
• Aluminum flat beater
• Heavy-duty stainless steel flat beater
• Wire whip
• Aluminum dough hook
• 6ft (1.8m) power cord
• Stainless steel bowl

Accessories:

• MAA-30A Adjustment Bracket for MA-52 5qt Mixer to adjust clearance between beater and bowl
• MAA-32 Stainless Steel Bowl for 5qt Laboratory Mixers for use as an additional or replacement bowl
• MAA-28 Heating Adapter Kit for 5qt Lab Mixer is 250 watts and helps maintain elevated temperatures for specimen preparation
• MAA-266 Heavy-Duty Stainless Steel Flat Beater for 5qt Mixers available as additional or replacement beater
• MAA-260 Stainless Steel Wire Whip for 5qt Laboratory Mixers is used for mixing samples that are less dense
• MAA-31 Acrylic Lid for Laboratory Mixer Bowl provides a tight fit to preserve samples stored in the bowl
