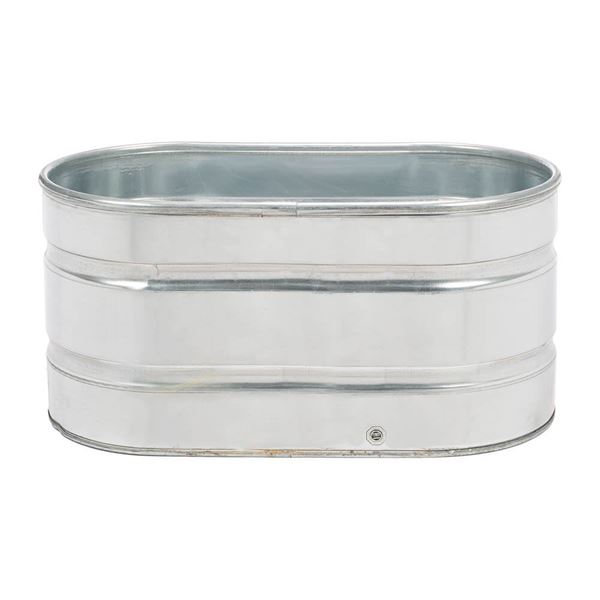

Steel Concrete Curing Tanks are available for curing cylinders, beams, and other molded specimens. The deep tanks are filled with lime-saturated water and maintained at proper temperatures. They meet all requirements specified in ASTM and AASHTO standards for the initial field and long-term laboratory curing with less expense and greater adaptability than full-scale moist curing rooms.
Pipe-reinforced top provides an extra-strong, crush-proof rim, and a sturdy rolled seam with enclosed sealant prevents leaks. Side panels are 22-gauge, zinc-coated galvanized steel with both diagonal and horizontal corrugations for additional strength. The bottom is 20-gauge, zinc-coated galvanized steel. All four models come with a drain plug.
Note: Curing Tanks are oversized and must be shipped via motor freight.
Features:
- Composed of durable zinc-coated galvanized steel
- Adaptable, cost-effective alternative to full-scale moist curing rooms
- Rolled seam with enclosed sealant prevents leaks
Included Items:
- Steel Concrete Curing Tank (100, 169, or 300gal)
Accessories:
- Concrete Transport Cylinder Racks store and protect multiple specimens during transport
| Capacity | HM-620: 100gal (379L)
HM-621: 169gal (640L) HM-626: 300gal (1,136L) |
| Material | Galvanized Steel |
| Product Dimensions | Dimensions are approximate and may vary on each individual tank
HM-620: 48 x 24 x 24in (1,220 x 610 x 610mm) WxDxH HM-621: 72 x 24 x 24in (1,829 x 610 x 610mm) WxDxH HM-626: 96 x 36 x 24in (2,438 x 914 x 610mm) WxDxH |
| Estimated Shipping Weight | HM-620: 68.0lb (30.84kg)
HM-621: 85.0lb (38.56kg) HM-626: 135.0lb (61.24kg) |
| Notes | Curing Tanks are oversized and must ship via motor freight |
