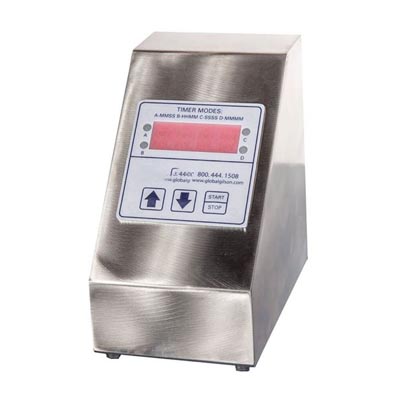

Digital Lab Timer for sieving and screening machines and useful for other timed applications with up to 1hp single-phase motors or 20 amp loads. Bright 0.5in (12.7mm) LED display indicates remaining time, stops machine at zero, then resets to programmed time for next use. Test times are set with tactile panel buttons. When stopped and restarted, the countdown resumes from the time remaining when paused. Timer operates in four modes with capacities of 9,999 sec; 9,999 min; 99:59 min:sec; or 99:59 hr:min. Electronics are mounted in a stainless steel case. The timer has a three-wire receptacle for timed devices.
TSA-169RF model is 230V/50Hz and contains two 6ft (3m) three-wire cords without plugs for hardwiring to the Testing Screen and the main electrical source.
Features:
- Bright LED Display
- Timing resumes from the stopped time when restarted
- Four different operating mode capacities
Included Items:
- Digital Lab Timer (115V, 60Hz or 230V, 50Hz)
Specifications:
| Timing Capacity | 9,999 seconds, 9,999 minutes, 99:59 min:sec, 99:59 hr:min |
| Display | 0.5in (12.7mm) LED |
| Electrical | 115V/60Hz or 230V/50Hz |
| Product Dimensions | 4.5x5x5.5in (114x127x140mm), WxDxH |
| Estimated Shipping Weight | 3.0lb (1.36kg) |
