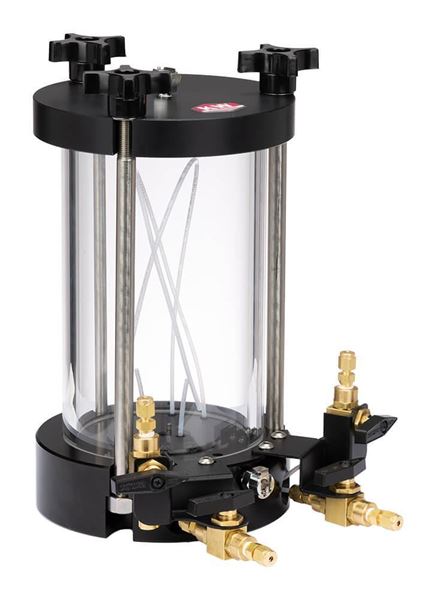

Flexible Wall Permeability Cell, for 1.4 to 4in dia. specimens, offer optimum performance with Gilson’s HM-350M Master Control Panel or HM-350A Auxiliary Control Panel, as well as other manufacturer’s systems. Test Cells are constructed with heavy-wall clear acrylic chambers and solid machined aluminum bases. Cells are fitted with precision zero-volume change ball valves and rugged quality fittings. The maximum operating pressure is 150psi (10.3bar). Inside chamber size is 4.75×8.25in (121x210mm) dia.xH.
HMA-514 Test Cell is equipped with rugged quality brass fittings.
HMA-514S Test Cell comes with stainless steel valves and fittings to resist corrosion from harsh permeant fluids.
Permeability Test Cells are designed to test a range of sample sizes; HM-514 models can test soil specimens from 1.4 (35.6mm) to 4.0 (101.6mm). A Test Cell Kit is required for use and is available separately. Kits correspond to specific testing specimen size and contain the individual components required: one anodized aluminum specimen cap and pedestal, two Porous Stones, two Latex Membranes, and four O-Rings. Optional accessories include the HMA-506 Specimen Height Indicator for Triaxial/Permeability Testing and the HMA-521 Digital Pore Pressure Gauge w/Transducer.
Features:
- Heavy-wall clear acrylic test chambers
- Zero-volume change ball valves
- Can accommodate 4in (102mm) samples with optional adapter set
- Available with brass or stainless steel fittings
Included Items:
- Flexible Wall Permeability Cell, 1.4 to 4in dia. Specimens, w/ Brass or Stainless Steel Fittings
Accessories:
- HM-350M Master Control Panel for regulating fluid and air pressure in a single test cell
- HM-350A Auxiliary Control Panel for connecting up to 2 auxiliary panels to increase the testing capability
- Pore Pressure Transducer with Digital Readout used to precisely measure soil pore pressure
- HMA-506 Specimen Height Indicator for Flexible Wall Permeability Testing tracks sample deformation
- Flexible Wall Permeability Test Cell Accessories contain correlating size products needed with test cells to test soil specimens
