HM-229 Soil Cement Mold Set is used to prepare specimens for compressive strength testing. The operator consolidates a pre-determined mass of soil-cement mixture into the mold assembly, first using a tamping rod, and then using a dropping-weight compactor until the required length dimension is achieved.

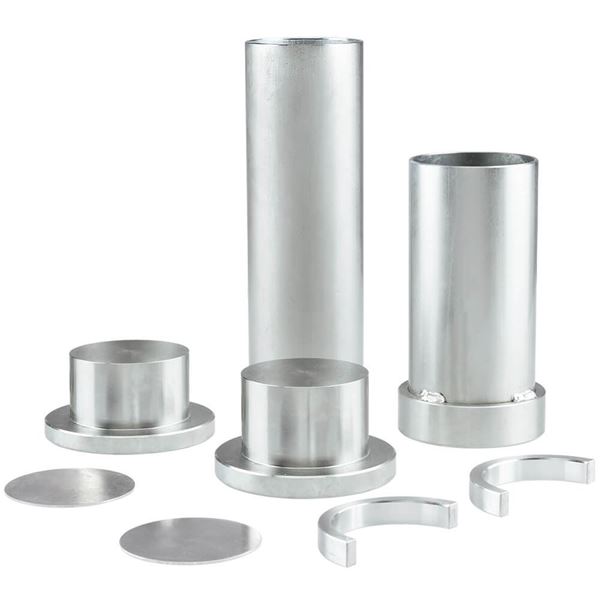

The Mold Set consists of a 2.8x9in (71x229mm) IDxH seamless steel mold, a 6in (152mm) mold extension with collar, top and bottom pistons, a split spacer clip, and two aluminum 1/16in (1.54mm) thick separating discs.
Features:
- Required for molding soil-cement specimens for compressive strength testing
- Order extra molds for efficient sample preparation
Included Items:
- Soil Cement Mold Set
- 2.8x9in (71x229mm) IDxH seamless steel mold
- 6in (152mm) mold extension with collar, top and bottom pistons
- Split spacer clip
- Two aluminum 1/16in (1.54mm) thick separating discs
Accessories:
- HMA-122 9in Mold Only for Soil Cement Mold Set offers more efficient specimen preparation and curing
- HMA-123 9in Mold with 6in Extension for Soil Cement Mold Set has a collar for connecting to the standard 9in (229mm) mold
- HMA-124 Top & Bottom Piston Set for Soil Cement Mold Set sets the length of the sample from blows of the compactor
- HMA-125 Tamping Rod for initial consolidation of specimens
