Motorized Atterberg Liquid Limits Machine

Liquid Limit is the water content at which soil changes from a liquid to a plastic state, defined as a point where two halves of a soil sample flow together when jarred 25 times in a specified manner using a Liquid Limit machine.

Gilson offers motorized or hand-crank-operated machines with either an automatic impact counter or a cost-effective hand-crank model without a counter. All models consist of a brass cup and carriage designed to control drop to exactly 1cm onto a hard rubber base. The height of the drop is adjusted by a nut at the rear of the cup carriage using the gauge at one end of the included plastic Casagrande Grooving Tool, model SAA-10P. The cup attaches to the carriage by a pin for easy removal when cleaning or inspecting. All mechanical parts are machined from solid brass and rubber feet isolate the base from the work surface.

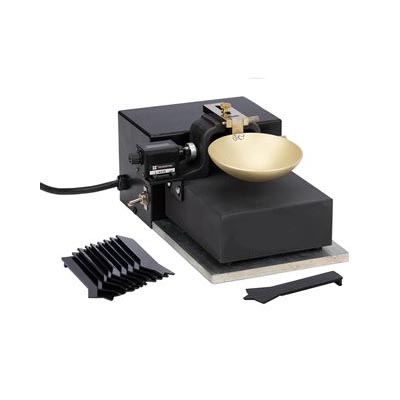

SA-60 Motorized Liquid Limit Machine includes a counter and is most accurate with the use of a specially geared motor, assuring a proper operating speed of 1.9–2.1 drops per second. An on-off switch is provided. Operates on 115V, 60Hz or 230V, 50Hz.

SA-61 Hand-Operated Liquid Limit Machine does not have a counter and is a more economical option.

SA-62 Hand-Operated Liquid Limit Machine includes a counter which offers a more automated, cost-effective option.

Features:

• Variety of motorized or hand-crank options to fit your application and budget
• Complete control of drop to 1cm
• Easily removable cup for cleaning or inspection

Included Items:

• Motorized Liquid Limit Machine
• Plastic Casagrande Grooving Tools (Package of 10)

Accessories:

• Liquid Limit Grooving Tools, three options available Casagrande ASTM SAA-10, a 2-piece metal set, SAA-10P, which is plastic, or SAA-8 to meet AASHTO requirements
• SAA-11 Liquid Limit Brass Cups
• SA-65 Accessory Set for Liquid/Plastic Limits
• SA-66 Glass Plate

Specifications:
