Expansion Index Testing

4 items

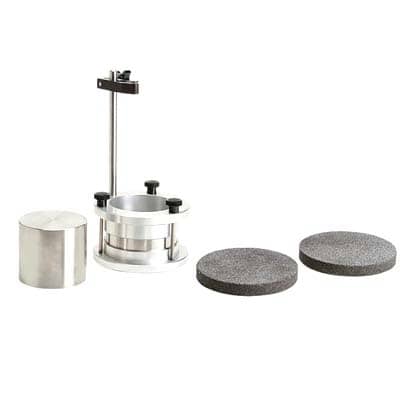

Expansion Index Consolidometer

Self-contained unit for conducting expansion tests on cured soil specimens. After compaction in stainless steel ring, specimen is placed in the consolidometer with air-dried porous stones, and loaded with a stainless steel weight. Specimen is allowed to consolidate for 10 minutes, after which it is immersed in distilled water for up to 24 hrs. During this time, height of specimen is recorded to determine maximum swell. Corrosion resistant, durable anodized aluminum and stainless steel construction. Includes anodized aluminum base and collar, stainless steel specimen ring and weight, 12.6 lb. (5.7kg) loading weight, and 3.99" dia. x 0.5" (101.4 x 12.5mm) porous stones. Dial Indicator required, see below. 6" dia x 11" H (152 x 279mm).

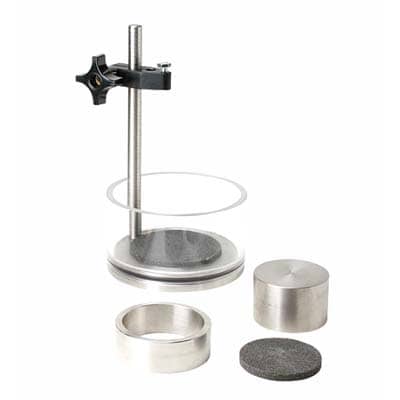

Basic Swell/Expansion Consolidometer

A self-contained consolidometer used to conduct swell expansion tests on soil specimens. Set includes: stainless steel base/acrylic ring device with adjustable, dial indicator standard and bracket, a compaction specimen ring, top and bottom porous stones and a 60 psf stainless steel loading weight. Consolidometer can also be used with cutting ring, listed below, instead of supplied compaction ring for use in acquiring samples from undisturbed Shelby tube samples. A dial indicator is required, choose from either H-4471 with a range of .500" with .0001" divisions or H-4465.12 with a range of 12mm and .002mm divisions. Alternative loading weights are also available, please inquire.

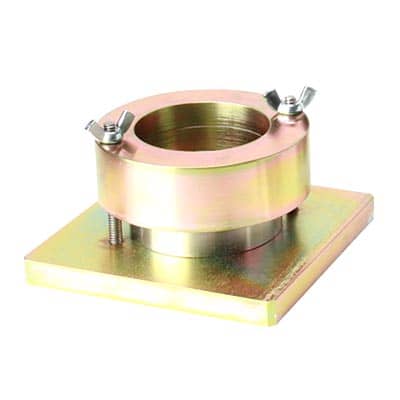

Compaction Base and Collar

The compaction base and collar are used to produce a soil sample for use with the basic swell/expansion consolidometers. Use HM-3701 compaction hammer.

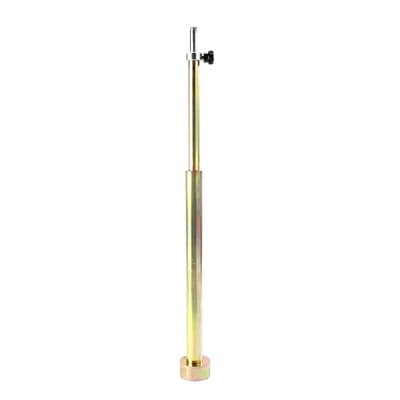

Compaction Hammer

Rod with sliding weights on a 2" (51mm) dia foot. Stop allows adjusting height of drop up to 8" (203mm). Includes one .25 lb. (100g) and one 2.25 lb. (1kg) weight.

Expansion Index Testing equipment is used to determine the swelling potential of expansive soils when exposed to moisture. This test is crucial for assessing soil behavior and preventing structural damage in foundations and pavements.
