SCC Testing Apparatus

Advanced Testing Solutions for Self-Compacting Concrete (SCC)

The SCC Testing Apparatus is a range of specialized equipment designed to evaluate the fresh properties of Self-Compacting Concrete (SCC). Unlike conventional concrete, SCC flows under its own weight without the need for vibration, making it ideal for heavily reinforced structures, complex formwork, precast elements, and high-performance construction.

To ensure optimum performance, SCC must be tested for filling ability, passing ability, viscosity, flowability, and segregation resistance. SCC Testing Apparatus enables engineers and laboratory technicians to accurately assess these properties and ensure compliance with international quality standards.

At QC LAB Solution Bangladesh, we supply high-quality SCC testing equipment for construction companies, ready-mix concrete plants, universities, research institutions, quality control laboratories, and infrastructure projects across Bangladesh.

---

What is SCC Testing Apparatus?

SCC Testing Apparatus includes a collection of laboratory instruments specifically developed to evaluate the fresh performance of Self-Compacting Concrete. These tests determine whether the concrete can flow freely, pass through congested reinforcement, maintain stability, and resist segregation without mechanical compaction.

Accurate SCC testing helps ensure superior concrete quality, improved structural integrity, and efficient construction practices.

---

Importance of SCC Testing

SCC testing is essential because it:

• Verifies filling ability of fresh SCC.
• Evaluates passing ability through reinforcement.
• Measures flowability and viscosity.
• Detects segregation and bleeding.
• Ensures compliance with project specifications.
• Supports quality assurance (QA) and quality control (QC).
• Improves placement efficiency.
• Enhances durability and structural performance.

---

Common SCC Testing Apparatus

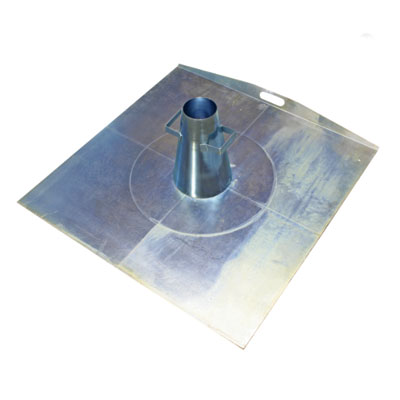

1. Slump Flow Test Apparatus

Measures the free-flow spread of SCC after lifting a standard slump cone. It evaluates flowability and filling ability.

Typical Standard: EN 12350-8

---

2. T500 Slump Flow Measurement

Measures the time required for SCC to reach a 500 mm diameter, providing information about concrete viscosity.

---

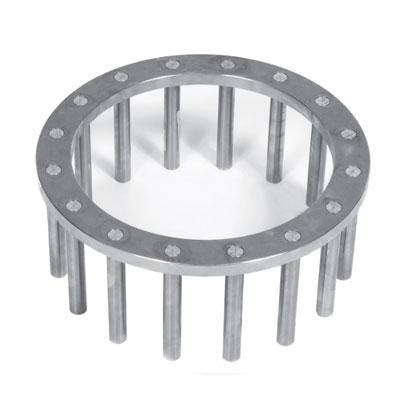

3. J-Ring Test Apparatus

Assesses the passing ability of SCC by measuring its flow through simulated reinforcing bars.

Typical Standard: EN 12350-12

---

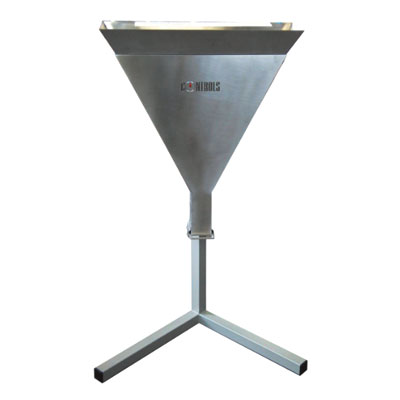

4. V-Funnel Apparatus

Measures the flow time of SCC through a V-shaped funnel, indicating the viscosity and filling capability of the concrete.

Typical Standard: EN 12350-9

---

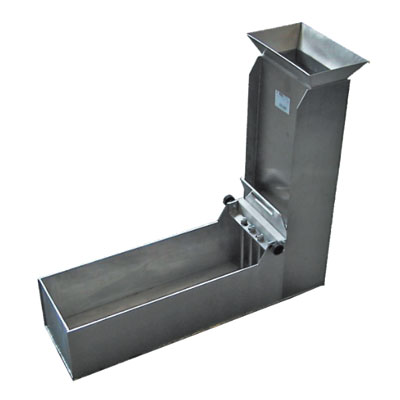

5. L-Box Apparatus

Evaluates the passing ability of SCC by measuring its ability to flow through reinforcing bar obstacles.

---

6. U-Box Apparatus

Determines the filling and passing ability of SCC by comparing concrete heights before and after flowing through reinforcing bars.

---

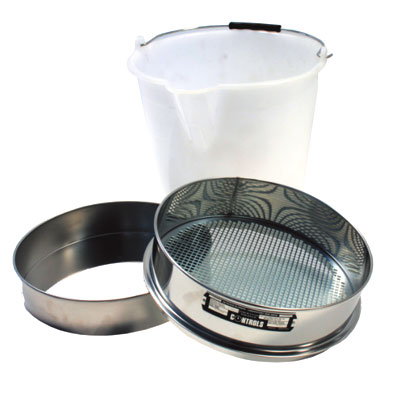

7. Sieve Segregation Apparatus

Measures the segregation resistance of SCC by determining the percentage of mortar passing through a sieve.

Typical Standard: EN 12350-11

---

Key Features

High-quality SCC Testing Apparatus typically offers:

• Durable stainless steel or powder-coated steel construction
• Precision-engineered dimensions
• Corrosion-resistant finish
• High measurement accuracy
• Easy specimen preparation
• User-friendly operation
• Long service life
• Low maintenance
• Compliance with international standards
• Suitable for laboratory and on-site testing

---

Equipment Included in an SCC Testing Laboratory

A complete SCC testing setup may include:

• Slump Flow Cone
• Base Plate with Diameter Markings
• J-Ring Apparatus
• V-Funnel Apparatus
• L-Box Apparatus
• U-Box Apparatus
• Sieve Segregation Test Equipment
• Stopwatch
• Measuring Scale
• Tamping Tools
• Laboratory Accessories

---

Common Testing Standards

SCC Testing Apparatus is designed in accordance with internationally recognized standards, including:

• EN 12350-8 – Slump Flow Test
• EN 12350-9 – V-Funnel Test
• EN 12350-10 – L-Box Test
• EN 12350-11 – Sieve Segregation Test
• EN 12350-12 – J-Ring Test
• EFNARC Guidelines for Self-Compacting Concrete
• ACI 237R – Self-Consolidating Concrete
• Project-specific specifications and quality requirements

Following these standards ensures accurate, repeatable, and internationally accepted testing results.

---

Applications

SCC Testing Apparatus is widely used in:

• Ready-mix concrete plants
• Construction companies
• Precast concrete manufacturing
• High-rise building projects
• Bridge construction
• Tunnel construction
• Infrastructure projects
• Civil engineering laboratories
• Universities and research institutions
• Government quality control agencies

---

Benefits of SCC Testing

Using SCC Testing Apparatus provides:

• Accurate evaluation of fresh SCC properties
• Improved concrete quality control
• Better mix design optimization
• Enhanced structural performance
• Reduced segregation and bleeding
• Compliance with international standards
• Increased construction efficiency
• Reliable and repeatable laboratory results

---

Why Choose QC LAB Solution Bangladesh?

QC LAB Solution Bangladesh is a trusted supplier of civil engineering and construction material testing equipment, offering complete laboratory solutions for concrete, cement, aggregates, soil, asphalt, rock, and geotechnical testing.

Our Advantages

• Premium-quality SCC Testing Apparatus
• Compliance with ASTM, EN, EFNARC, and ACI standards
• Professional installation and commissioning
• Calibration and maintenance support
• Technical training
• Reliable after-sales service
• Competitive pricing
• Fast delivery throughout Bangladesh
• Expert engineering consultation

Our commitment is to provide laboratories and construction professionals with reliable equipment that ensures accurate testing and superior construction quality.
