Soil - Field

Soil-Field

The section includes soil testing equipment for in-situ tests, analysis, and classification. This includes sampling, and field inspection equipment used to profile soil layers and collect field samples for testing and classification.

Electrical Density Gauge

Electrical Density Gauge Model E (EDGe) is used for determining the density and moisture content of aggregate, soil aggregate compacted type I or II base, or native soil materials that are suitable for shallow foundations, such as secondary roads or base aggregate that is compacted in-place prior to the asphalt or concrete placement at the final grade. The EDGe quality assurance / quality control (QA/QC) system is lightweight, easy to use, and nuclear free.

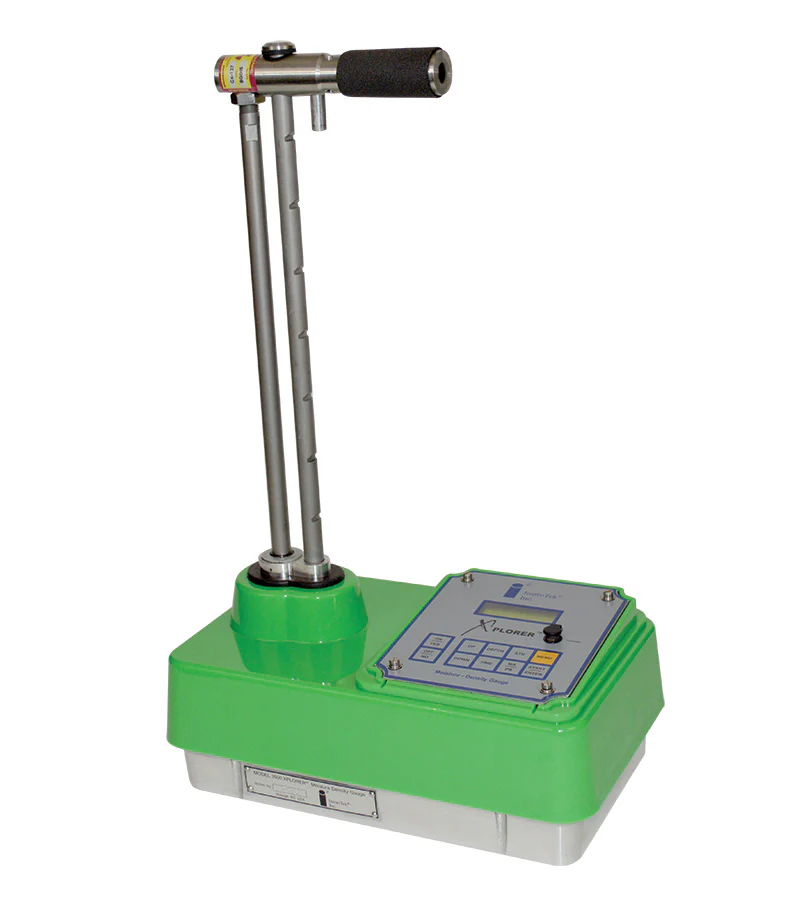

Nuclear Moisture/Density Gauge

We’ve developed a better Nuclear Moisture Density Gauge that is easy to operate, rugged and reliable. Nuclear Moisture Density Gauge has a proven track record of the best performance on the market with the lowest maintenance and operating costs. QC Lab Solution in Bangladesh is a nuclear moisture density gauge designed to provide superior performance, with design experience and expertise that is unmatched in the industry and service that you have come to trust for over 20 years. The Nuclear Moisture Density Gauge features the most up-to-date electronics, extremely reliable surface mount components, and straightforward simple operation.

Soil Auger Kit, Quick-Connect

DSFS

Soil Auger Kit, 5/8" Threaded

The Soil Auger Kit, 5/8" Threaded is a reliable soil sampling solution designed for efficient fieldwork. Its durable construction, secure threaded connection, and user friendly design make it ideal for environmental studies, agricultural assessments, and geotechnical investigations.

Basic Soil Sampling Kit

The Basic Soil Sampling Kit is a practical and dependable solution for collecting soil samples efficiently. Designed for field use, it offers durability, ease of operation, and consistent performance for agricultural, environmental, and research applications.

Auger, Cross-Handle, 16" Ratcheting

Ratcheting cross handle allows for faster augering times. Available in quick-connect, button-and-hex coupling system and threaded coupling.

Auger Handle, Quick-Connect

Cross handle with quick-connect, button-and-hex coupling system connect and disconnect faster and with less hassle than threaded systems.

Auger Handle, Threaded Connection

Cross handle with threaded connections use standard, national course, threads. 5/8" connections and are the most common and least expensive handle attachment method.

Augers, Bucket-Type, Quick-Connect, Regular

Quick-connect, button-and-hex coupling system allows components to connect and disconnect faster and with less hassle than threaded systems. Quick-connect connections, are not compatible with slide hammers. Bucket augers offer outstanding durability and allow access to deeper depths. The regular auger bit is designed for ordinary soil sampling. Heat treated, high carbon steel bits with tungsten carbide hard-surfaced edges. Bits are welded to a stainless steel cylinder, topped with a carbon steel ball.

Augers, Bucket-Type, Quick-Connect, Sand

Quick-connect, button-and-hex coupling system allows components to connect and disconnect faster and with less hassle than threaded systems. Quick-connect connections, are not compatible with slide hammers. Bucket augers offer outstanding durability and allow access to deeper depths. The sand auger bit is used for dry, sandy soils. Heat treated, high carbon steel bits with tungsten carbide hard-surfaced edges. Bits are welded to a stainless steel cylinder, topped with a carbon steel ball.

Augers, Bucket-Type, Quick-Connect, Mud

Quick-connect, button-and-hex coupling system allows components to connect and disconnect faster and with less hassle than threaded systems. Quick-connect connections, are not compatible with slide hammers. Bucket augers offer outstanding durability and allow access to deeper depths. Mud auger bits are designed for sampling heavy, wet soil or clay samples; opening facilitates removal of wet samples. Heat treated, high carbon steel bits with tungsten carbide hard-surfaced edges. Bits are welded to a stainless steel cylinder, topped with a carbon steel ball.

Augers, Bucket-Type, Threaded, Regular

The regular auger bit is designed for ordinary soil sampling. Quick-connect, button-and-hex coupling system allows components to connect and disconnect faster and with less hassle than threaded systems. Quick-connect connections, are not compatible with slide hammers. Bucket augers offer outstanding durability and allow access to deeper depths. Heat treated, high carbon steel bits with tungsten carbide hard-surfaced edges. Bits are welded to a stainless steel cylinder, topped with a carbon steel ball.

Auger Sand, Bucket-Type, Threaded

The sand auger bit is used for dry, sandy soils. Quick-connect, button-and-hex coupling system allows components to connect and disconnect faster and with less hassle than threaded systems. Quick-connect connections, are not compatible with slide hammers. Bucket augers offer outstanding durability and allow access to deeper depths. Heat treated, high carbon steel bits with tungsten carbide hard-surfaced edges. Bits are welded to a stainless steel cylinder, topped with a carbon steel ball.

Augers, Bucket-Type, Threaded, Mud

Threaded connections use standard, national course, 5/8" threads and are the most common and least expensive. Augers, core samplers, probes, slide hammers, hammer-head handles, and kits are available with threaded connections. Bucket augers offer outstanding durability and allow access to deeper depths. Mud auger bits are designed for sampling heavy, wet soil or clay samples; opening facilitates removal of wet samples. Heat treated, high carbon steel bits with tungsten carbide hard-surfaced edges. Bits are welded to a stainless steel cylinder, topped with a carbon steel ball.

Augers, Extensions, Quick-Connnect

Auger extensions for Bucket-Type, Quick-Connect

Augers, Extensions, Threaded

Auger extensions for use with Bucket-Type, Threaded

Soil Sampling Auger, Spiral-Type

For use in sampling soils, auger has 1.5" dia. x 4" long (38mm x 102mm) spiral-type auger bit. Features graduation marks every 6" (152mm). Overall length is 36" (914mm), including handle. Screw-on handle permits attachment of H-4251 extension for sampling beyond 36" depths.

Auger Set with Quick-release Handle and Bucket

Set includes a 3.25" auger head of zinc-plated steel, auger T-handle, 36" (914mm) auger extension and (2) Quick-release Connector Pins.

Auger, Iwan-Type with T-Handle

T-handle augers are also known as post-hole, Iwan-type or non-adjustable augers. Feature 36" (914mm) long steel shaft and hardwood cross handle. Available 2" (51mm) to 6" (152mm) diameter. Overall length 48" (1219mm). Complies with ASTM D420, D1452; AASHTO T86, T202. Shipping wt. 7 lbs. (3.2kg).

Slide Hammers

Slide hammers are used for easier penetration and extraction of soil samplers and probes. The Hammer consists of steel tubing that slides over a hardened steel rod, which is threaded to 5/8" NC to accommodate drive rods and extensions. Soft, baked-on rubber coating and ball-grip handle reduces shock to operator's hands and increases comfort.

Two-Speed Mechanical Replacement Jack

Mechanical, two-speed loading jack used in the H-4156 and H-4156M loading presses.

Electrical Density Gauge Model E - EDGe

Introducing Humboldt’s next generation, Non-Nuclear, soil density, field and in-lab gauge, the EDGe (model e). The EDGe provides Nuclear-Free, Field Density Measurements Based On In-Lab Proctor Test Data.

Lightweight Deflectometer (LWD)

Lightweight Deflectometers (LWDs) are increasingly being used to determine overall compaction quality of all types of earthworks through their use as a QC/QA field test. LWDs provide a rapid determination of elastic modulus, which is an essential factor in mechanistic design and can be used as an accurate assessment of compaction. An LWD is used for measuring the bearing capacity (deflection) of subgrade/subsoils and unbound base layers, granular layers and backfilling materials, according to ASTM E2835-11. Based on the static plate load test requiring a load vehicle, the LWD provides a simple, fast and repeatable test providing an accurate assessment of compaction parameters. Applications for this non destructive method of testing include bearing capacity and compaction include road construction, pipeline and cable backfill, railway track beds, airport runway/taxiways, dam construction, embankments, foundations and other earthworks. Humboldt offers two versions of the Lightweight Deflectometers from HMP – deluxe models: the HD-4129.3F (10kg) and the HD-4159.3F (15kg) and basic units: the HD-4130.3F (10kg) and the HD-4149.3F (15kg). Both units are the same mechanism and differ only in the controller used with each one. The LWD is calibrated at time of manufacturing and comes with a calibration certificate. The calibration is valid for 1 year.

GeoGauge

The GeoGauge is a unique, QC/QA field tool that can be used to measure the uniformity of unbound pavement layers by measuring the variability in stiffness throughout a structure. It is an excellent tool for identifying construction anomalies that would otherwise go undetected during construction where only density or percent compaction measurements were used. By measuring stiffness, the GeoGauge can reveal and thus help reduce variabilities in layer properties, which density measurements may miss, thus allowing corrective actions to be taken during construction to ensure that the highest quality base and subgrade are achieved despite variations in materials used. The GeoGauge is the perfect companion instrument for density measuring devices such as nuclear gauges and the electrical density gauge. Density measuring devices can be used to ensure that proper compaction is achieved and the GeoGauge can be used to verify that the stiffness/ modulus values assumed in the design specifications of new or rehabilitated pavement structures are met. Compacting and monitoring pavement layers directly to design requirements of structural layer stiffness or material modulus in addition to percent compaction during the construction process establishes the means to effectively control structural uniformity, strength and deflection, as well as enabling the monitoring and control of the construction quality of various materials. This leads to better smoothness and longer lasting pavement surfaces at lower cost.

HS-5001NX Nuclear Density Gauge

Humboldt’s New HS-5001NX Moisture/Density Gauge provides more efficient operation, data collection and processing than any other gauge in its class. The HS-5001NX brings you a host of new features aimed at making your job easier. Featuring a color touchscreen, the NX Gauge provides intuitive operation of all gauge operations. It also provides touch pad operation as an alternative control method.

HS-5001EZ-2 Nuclear Density Gauge

Humboldt’s HS-5001EZ-2 reflects the latest in portable, electronic design for nuclear gauges, featuring a large, back-lit LCD display. Humboldt’s EZ-2 Moisture/Density Gauge is just that — easy. Easy-to-operate, easy-to-power and easy-to-service. The EZ-2 gauge features a menu-driven control panel with easy-to-use, built-in test routines and auto features, making testing a quick and accurate operation. It also features our innovative trigger release handle that eliminates pinched fingers while providing smooth operation.

EZ-2 Nuclear Density Gauge Upgrade Options

Humboldt’s HS-5001EZ-2 upgrade options allow you to customize your EZ-2 Nuclear Density Gauge.

Power Mechanical Earth Drill

For soil sampling, construction and more, earth augers are gasoline powered and portable. Using one operator, they allow fast and easy drilling. They feature snap-on or screw-on augers and extensions. Engine mounted on wheel-base carrier keeps motor noise and fumes away from the operator. Torque tube eliminates counter torque. Features such as the carrier and torque tube offer greater mobility, beneficial in areas inaccessible to large equipment, on slopes and horizontal drilling, various standard sampling methods to obtain material samples. Recoil starter and spring-loaded throttle-in-handle assembly provide fingertip control. Centrifugal clutch, heavy-duty flexible shaft connects to the motor and provides for a smooth operation. Blades and points are tool steel, hard-surfaced and heat treated. Blades are reversible for longer life. Most augers are snap-on design; smaller diameter augers are screw-on. Auger has either 5HP or 8HP, 4-cycle engine with 10:1 gear ratio, complete with wheel kit and torque tube. Order augers and extensions separately. For augers 1.5" to 6" dia., maximum depth is 18' (38 to 152mm, 5.5m deep).

Snap-On Augers, 42 Inch

42-inch, Snap-On Augers for use with the Mecahnical Powered Earth Drill. 42-inch Augers drill a 36" deep hole and easily snap on and off the drill. Snap-on Extensions are available, as well as Tube Extensions.

Full-flighted- Snap-On Extensions

Extensions for use with the Mechanical Powered Earth Drill. These extensions increase the auger length for drilling deeper holes and can be easily added between the auger and the Earth Drill.

Power Mechanical Earth Drill, Replacement Points & Blades

Power Mechanical Earth Drill, Replacement Points & Blades. Replacement points and blades for the Power Mechanical Earth Drill.

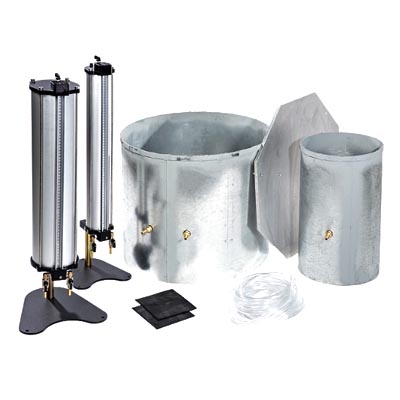

Double Ring Infiltrometer

Ideal for field testing, as well as lab use, the Double-Ring Infiltrometer provides actual field measurements of the rate of infiltration of water or other liquid through soils, especially fine-grained soils in accordance with ASTM D3385. The test provides reliable data for use in environmental and other geotechnical studies, such as liquid waste disposal, leaching, drainage, irrigation requirements, and canal or reservoir leakage.

Guelph Permeameter Kit

The Guelph Permeameter is an easy-to-use instrument to quickly and accurately measure in-situ hydraulic conductivity. Accurate evaluation of soil hydraulic conductivity, soil sorptivity, and matrix flux potential can be made in all types of soils. The equipment can be transported, assembled, and operated easily by one person. Measurements can be made in 1.5 to 2 hours, depending on soil type, and requires only about 2.5 liters of water. Measurements can be made in the range of 15 to 75cm below the soil surface.

Vibration Compaction Frame/Hammer Set

Vibration compaction set used to compact soil samples. These tests determine the maximum dry unit weight and water content range for the effective compaction of granular soils using a vibrating hammer. The test set includes a heavy-duty frame designed to easily mount a vibration hammer. A vibration hammer includes a 5.75" tamper and a 12" long mounting shank. The set also includes an 11" split, compaction mold. The vibrating hammer test method may be performed in the field or the laboratory.

Water Level Indicator

The Water Level Indicator determines water levels in drainage operations, dams, reservoirs, embankments, wells, bore holes, underground cavities, or any hydrological/geological work. Works well with small openings, holes & shafts that are not always straight. Compact, self-contained units feature a jointed design for easy access to difficult openings. The weighted probe is lowered into the opening via a high-strength, flexible cable. Buzzer & light indicate when the water level has been reached. Readings taken from the marked cable to the very tip of the probe, so less than 1 ml of water is displaced. Probe resists false readings caused by cascading water.

Penetrometer, Universal

The Universal Penetrometer is ruggedly constructed for accurate, sensitive measurements. This unit is a direct-reading instrument for precision penetration measurements of bituminous materials, cement, petrolatum and waxes, as well as food, cosmetics and pharmaceutical products. The aluminum base has a machined, grooved table with leveling screws and rubber inserts to protect tips of needles and cones. Two stainless steel rods act as support guides for a cast aluminum head with coarse/fine adjustments and a calibrated friction-free plunger mechanism. Indicator dial has instant zero-reset and is graduated in 400 divisions of 0.1mm, corresponding to 40mm penetration. This unit has 5" diameter indicator dial, graduated in 400 divisions of 0.1mm, corresponding to 40mm penetration. Zero preset to eliminate errors. Includes 47.5g plunger with 3.2mm hole, and two loading weights (50g and 100g). Overall dim. 10.5" x 13" x 22" (266.7 x 330.2 x 558.8mm). A standard 2.5g ASTM D 5 Needle and two additional loading Weights (50g and 100g) are included. Any needle or cone with standard 1/8in (3mm) diameter stem can be mounted to the 47.5g plunger assembly.
