Field Charts

2 items

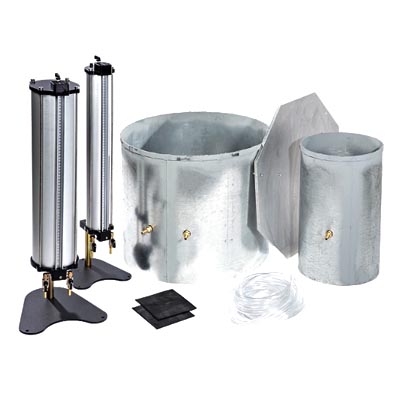

Double Ring Infiltrometer

Ideal for field testing, as well as lab use, the Double-Ring Infiltrometer provides actual field measurements of the rate of infiltration of water or other liquid through soils, especially fine-grained soils in accordance with ASTM D3385. The test provides reliable data for use in environmental and other geotechnical studies, such as liquid waste disposal, leaching, drainage, irrigation requirements, and canal or reservoir leakage.

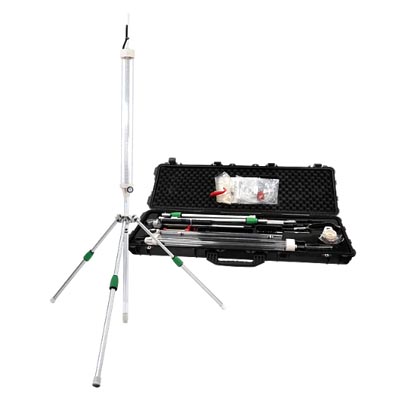

Guelph Permeameter Kit

The Guelph Permeameter is an easy-to-use instrument to quickly and accurately measure in-situ hydraulic conductivity. Accurate evaluation of soil hydraulic conductivity, soil sorptivity, and matrix flux potential can be made in all types of soils. The equipment can be transported, assembled, and operated easily by one person. Measurements can be made in 1.5 to 2 hours, depending on soil type, and requires only about 2.5 liters of water. Measurements can be made in the range of 15 to 75cm below the soil surface.

Field Charts are reference tools used in geotechnical engineering to classify soil properties and interpret test results on-site. These charts help engineers quickly analyze soil behavior for construction and design decisions.

Field Charts

Field Charts

Double Ring Infiltrometer

Guelph Permeameter Kit
