Automatic Mechanical Compactor

The mechanical compactor automatically compacts and rotates the mold after each blow while keeping track of the number of hammer blows and shutting off once a preset number of blows is reached. The start/stop function of the compactor is independent of the counter. The unit can be used to perform standard or modified compaction tests using a 5.5 lb. (2.5kg) hammer with 12" (305mm) height of drop or a 10 lb. (4.5kg) hammer with 18" (457mm) drop. Hammer lift compensates for the height of the drop for soil thickness in the mold during compaction. Hammer weight is concentrated at the foot, allowing free fall of the hammer. Hammer changes are made from in front of the compactor, making maintenance/adjustments easier without moving the machine away from its mounted location.

California Mech. Auto Compactor

Model complies with California method 216 and is supplied with a 2" round 10 lb hammer and corresponding piston and rod. Required split mold is available upon request

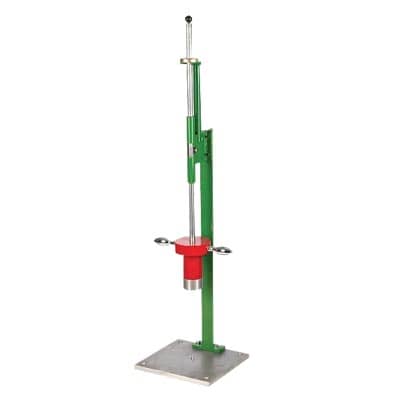

Soil Cement Compactor Apparatus

The Soil Cement Compactor Apparatus is designed for use with Soil-Cement Molds to prepare compressive-strength specimens for testing. It features a 15lb (6.8kg) falling weight mounted on a 3/4" (19mm) shaft guide, which strikes the top piston of the mold set to achieve dynamic consolidation of the specimen. The compactor’s base includes a locator pin for accurate positioning, ensuring precise centering of the Test Mold Set. The drop height is easily adjustable using a clip on the shaft guide.

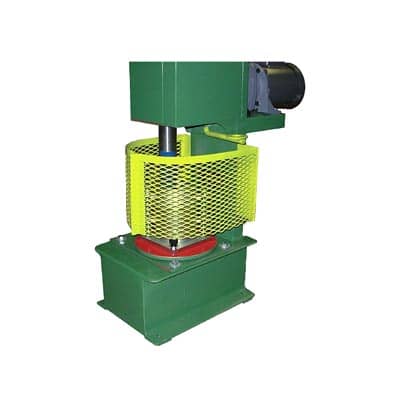

Mechanical Compactor Safety Cage

Cage provides protection from moving parts during compaction. Cage is hinged to allow access to mold and hammer.

Soil Compaction Hammer, Standard, Manual

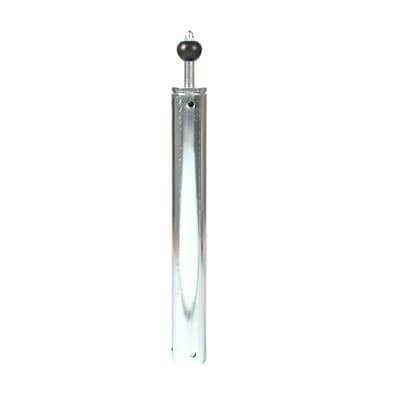

Manual, moisture/density hammer meets ASTM and AASHTO specs. It incorporates a 5.5 lb (2.54kg) weight and a drop of 12" (305mm) with a 2" (51) face. Guide sleeve has four vent holes in each end of sleeve to release built-up air pressure. Machined steel, plated for rust resistance. Features resilient rubber ball handle.

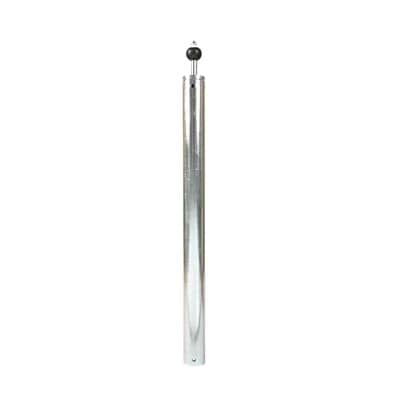

Soil Compaction Hammer, Modified, AASHTO

Manual, moisture/density hammer meets AASHTO specs. It incorporates a 10 lb (4.5kg) weight and a drop of 18" (457mm) with a 2" (51) face. Guide sleeve has four vent holes in each end of sleeve to release built-up air pressure. Machined steel, plated for rust resistance. Features resilient rubber ball handle.

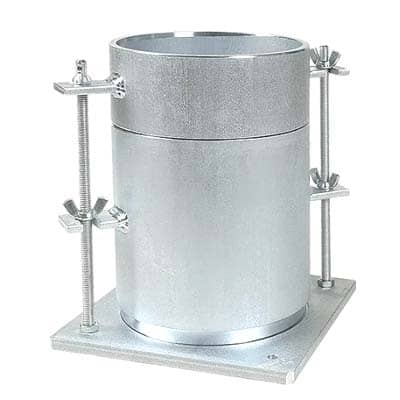

CBR Mold with Perforated Base

CBR mold with a volume of .1145 ft3. Cold-rolled steel tubing, plated for rust resistance. Collar extension and perforated base plate can be clamped on either end of cylinder.

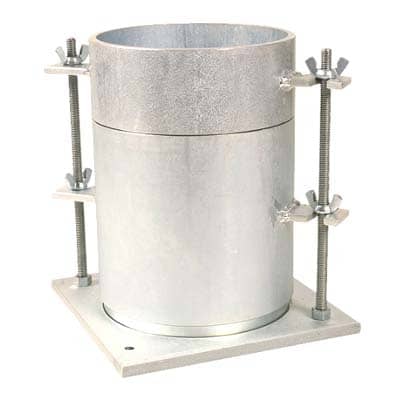

CBR Mold with Solid Base

CBR mold with a volume of .1145 ft3,. Cold-rolled steel tubing, plated for rust resistance. Collar extension and solid base plate can be clamped on either end of cylinder.

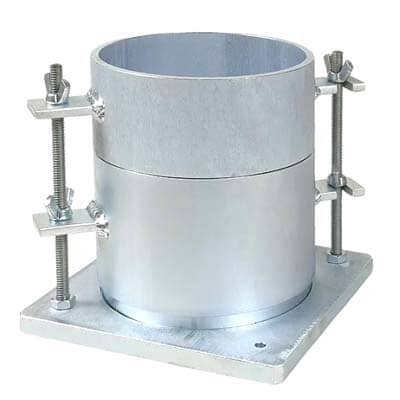

LBR Mold

Compaction mold with a volume of 1/13.33 ft3, cold-rolled steel tubing, plated for rust resistance. Mold dimensions are 6" ID x 6.1" H with a 2.5" detachable collar. Collar extension and solid base plate can be clamped on either end of cylinder.

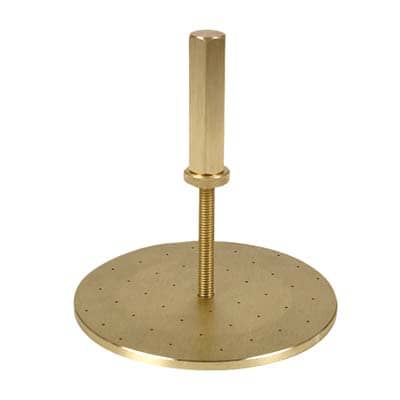

Swell Plates

Perforated 5-7/8" (149mm) dia. base with adjustable stem. Contact end of the stem is easily locked in place with a knurled nut.

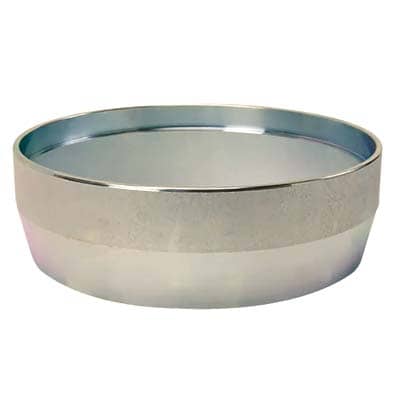

Cutting Edge

Machined from seamless tubing with a sharpened edge to enable undisturbed samples to be taken in the field. Cutting edge is plated for rust resistance and has a 6" (152mm) ID and 2" (51mm) high.

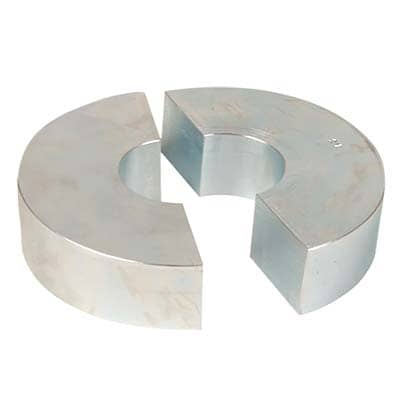

Surcharge Weights, 10 lb

10 lb. (4.5kg) Field surcharge weight, made in two parts; 5.875" (149mm) OD; 2.125" (54mm) ID.

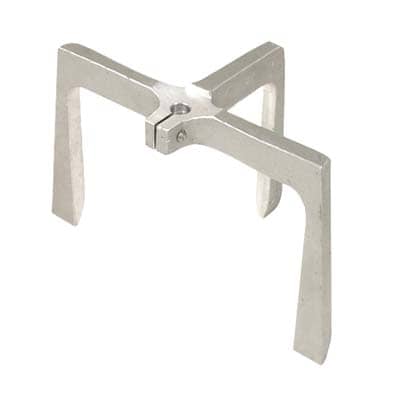

Swell Tripod Attachment

Metal Tripod supports dial gauge for measuring the amount of swell during soaking.

Surcharge Weights, 5 lb

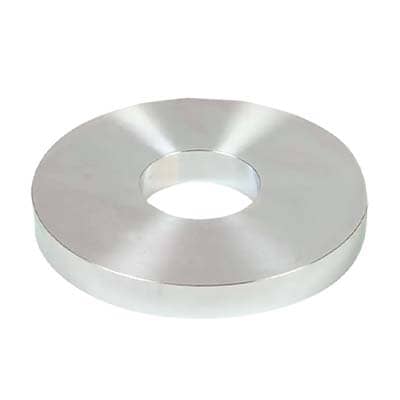

Used in the application of surcharged loads on the soil’s surface during soaking and penetration. Rust-resistant, plated annular disk weighs 5 lbs. (2.3kg), 5.875" (149mm) OD with a 2.125" (54mm) ID hole in center.

Slotted Surcharge Weights, 5 lb

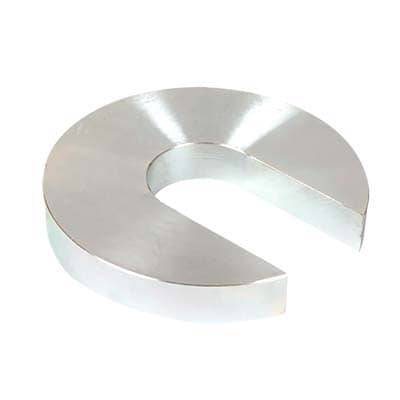

Used in the application of surcharged loads on the soil’s surface during soaking and penetration. Rust-resistant, plated annular disk weighs 5 lbs. (2.3kg), 5.875" (149mm) OD with a 2.125" (54mm) slot.

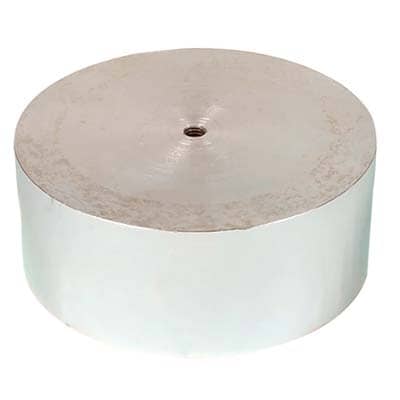

Spacer Disk

Disk is used as a false bottom in a soil mold during the compaction process. Plated, rust-resistant steel disk is 2.416" (36mm) high, 5-15/16" (152mm) dia.

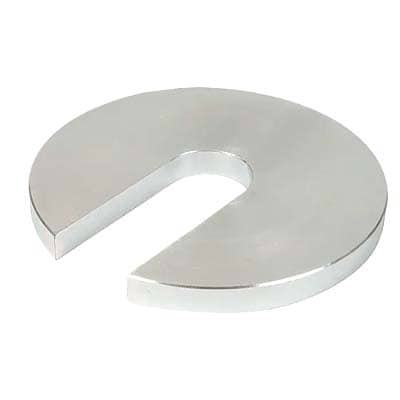

Slotted Surcharge Weight, 10 lb

10 lb. (4.5kg) slotted, field surcharge weight, 8.5" (216mm) dia.

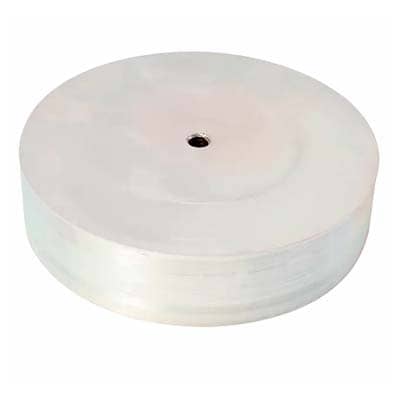

LBR Spacer Disc, 6

Disk is used as a false bottom in a soil mold during the compaction process. Plated, rust-resistant steel disk is 1.416" (36mm) high, 5-15/16" (152mm) dia.

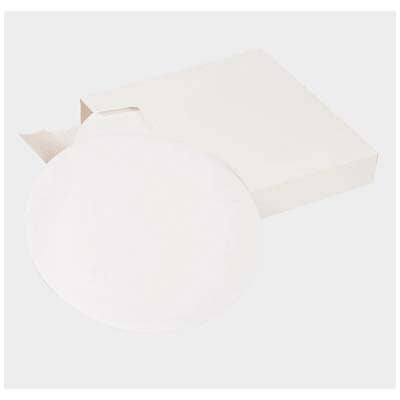

Filter Paper, Coarse Grade

100 pack of coarse grade filter paper used to separate spacer disc and soil in the CBR mold during compaction operation, or over the top surface of the soil when the compaction operation is completed.

Filter Screen

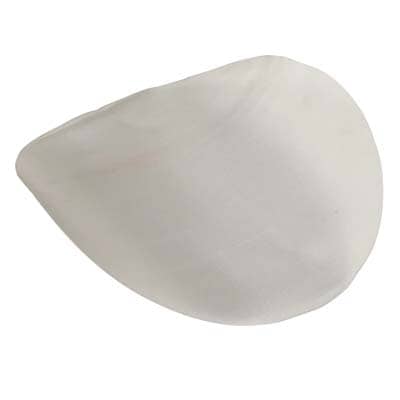

100 mesh stainless screen is 5-15/16" (152mm) dia.

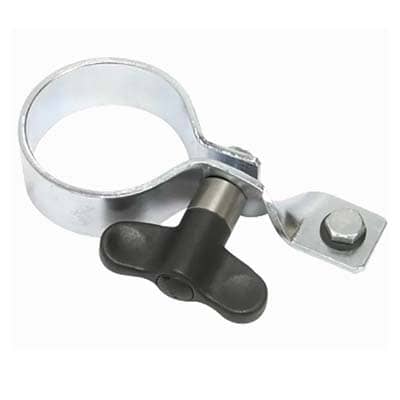

Dial Indicator Bracket

Bracket used to attach a dial indicator to the penetration piston.

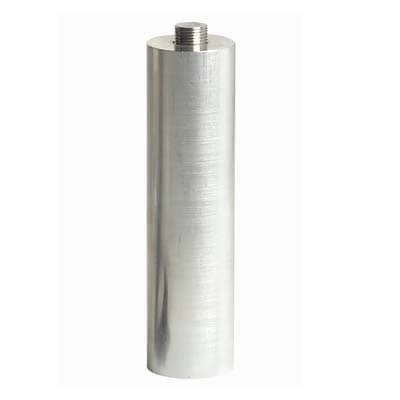

Penetration Piston

CBR penetration piston has 3 sq. in. (19.35cm2) base area and is about 7.5" (191mm) long. Designed for use in conjunction.

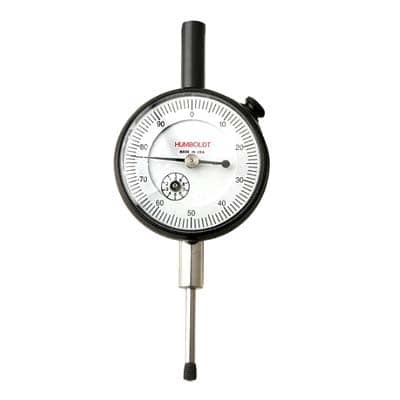

CBR Dial Indicators

Dial indicator has 1.000" operating range, graduated in 0.001" divisions, clockwise movement and revolution counter.

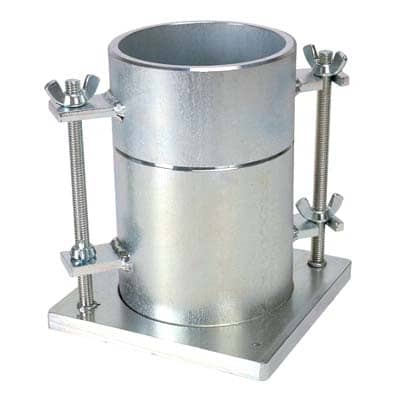

Standard Proctor Compaction Mold

Soil mold used where a compacted sample is required, such as standard proctor density/moisture tests. Mold volume is 1/30 ft3. Cold-rolled steel tubing, plated for rust resistance.

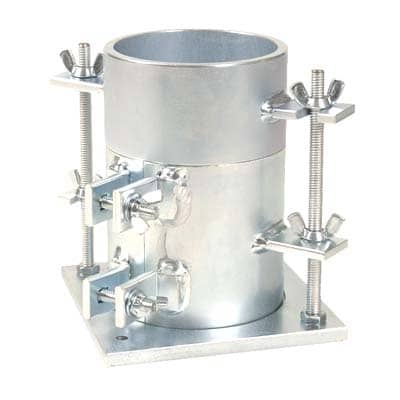

Standard Proctor Mold, Split, 4

Mold volume of 1/30 ft3. Cold-rolled steel tubing, plated for rust resistance. Includes detachable base plate, studs and wing nuts. Mold has vertical split in body with 2 quick-acting clamps for easy removal of specimen.

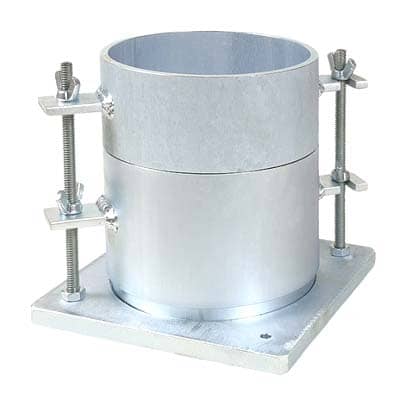

Modified Proctor Compaction Mold, 6

Soil mold used for modified proctor density/Moisture tests. Mold volume of 1/13.33 ft3. Cold-rolled steel tubing, plated for rust resistance.

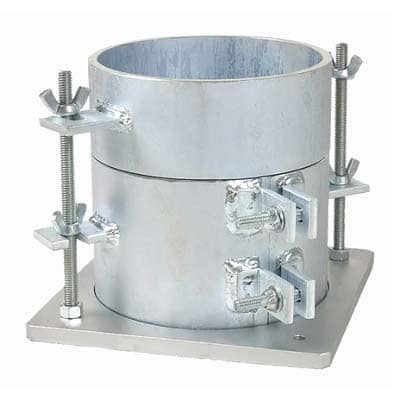

Modified Proctor Mold, Split Design, 6

Mold volume of 1/13.33 ft3, cold-rolled steel tubing, plated for rust resistance. Includes detachable base plate, studs and wing nuts. Mold has vertical split in body with 2 quick-acting clamps for easy removal of specimen.

Soil Compaction Mold, 6

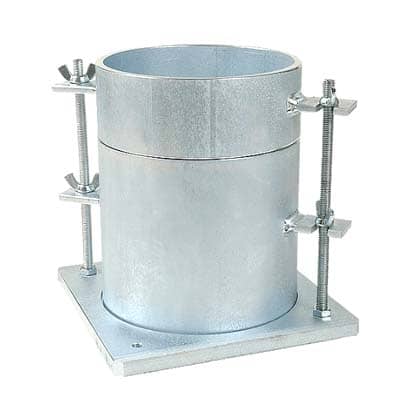

Compaction mold with a volume of 1/10th ft3. Cold-rolled steel tubing, plated for rust resistance.

Soil Test Compaction Split Mold

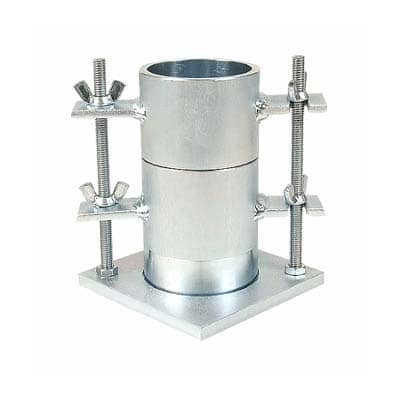

Compaction mold with a volume of .0214 ft3. Cold-rolled steel tubing, plated for rust resistance.

Vibration Compaction Frame-Hammer Set

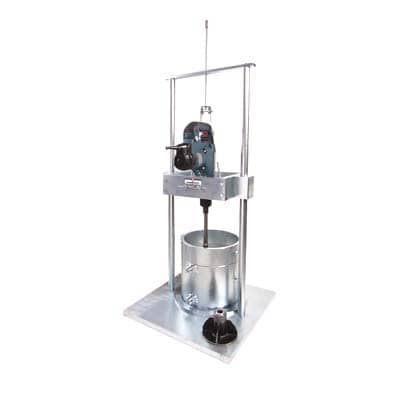

Vibration compaction set used to compact soil samples. These tests determine the maximum dry unit weight and water content range for the effective compaction of granular soils using a vibrating hammer. The test set includes a heavy-duty frame designed to easily mount a vibration hammer. A vibration hammer includes a 5.75" tamper and a 12" long mounting shank. The set also includes an 11" split, compaction mold. The vibrating hammer test method may be performed in the field or the laboratory.

Compaction Frame Only

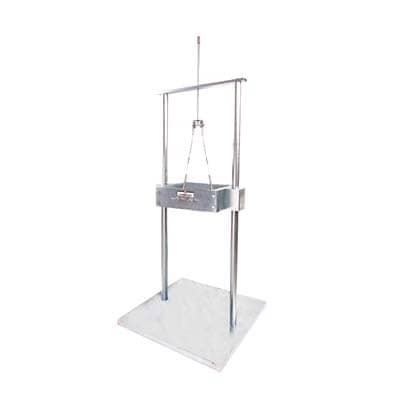

Mounting frame for compaction hammer set up. Does not include hammer or mold.

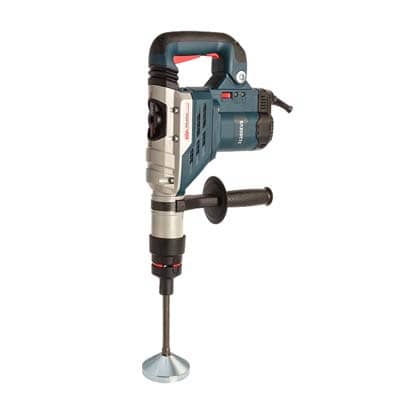

Vibration Compaction Hammer with Tamper

Includes hammer, 5.75" (146mm) Tamper and 12" (305mm) long mounting shank.

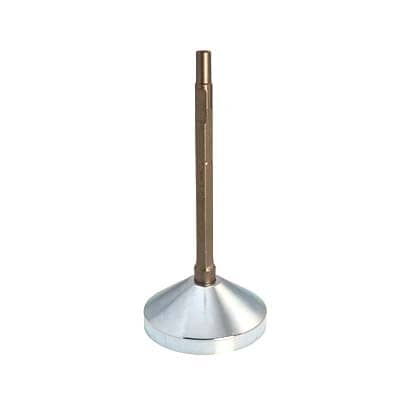

Tamper for Vibration Compaction Hammer

Replacement tamper and foot for soil compaction hammer.

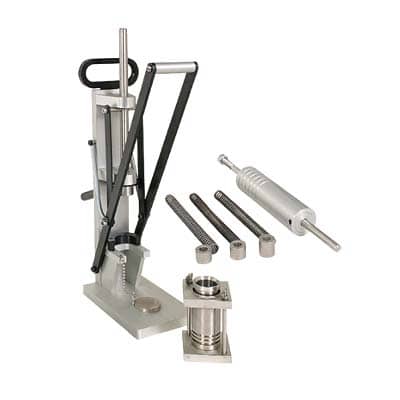

Harvard Miniature Compaction Apparatus

Used for moisture density tests using small samples, its compaction action duplicates the kneading action of a sheeps-foot roller.Unit is designed so collar remover and specimen ejector are consolidated into one piece. Set includes specimen ejector, collar remover with spacer plate, mold holder, 1/454 ft3 (129m3) volume mold and collar, compaction tamper with 20 lb. (9.07kg), 37.5 lb. (17kg), and 40 lb. (18.2kg) spring and operating instructions. Mold is machined from seamless tubing. Unit weight in pounds per ft3 m3 and the net weight of a compacted specimen in grams are figuratively equal.
