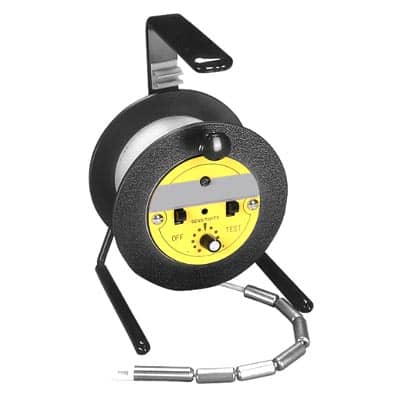

Water Level Indicator

The Water Level Indicator determines water levels in drainage operations, dams, reservoirs, embankments, wells, bore holes, underground cavities, or any hydrological/geological work. Works well with small openings, holes & shafts that are not always straight. Compact, self-contained units feature a jointed design for easy access to difficult openings. The weighted probe is lowered into the opening via a high-strength, flexible cable. Buzzer & light indicate when the water level has been reached. Readings taken from the marked cable to the very tip of the probe, so less than 1 ml of water is displaced. Probe resists false readings caused by cascading water.

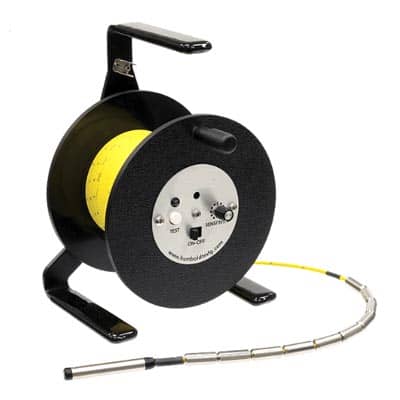

Deluxe Water Level Indicators

The New Deluxe Water Level Indicator from Humboldt delivers precise and dependable measurements for a wide range of hydrological and geological applications, including drainage operations, dams, reservoirs, embankments, wells, boreholes, and underground cavities. Engineered with convenience in mind, Humboldt’s New Water Level Indicator is a compact, self-contained solution designed to make water level monitoring easier and more efficient. Its innovative jointed design allows effortless access to tight or hard-to-reach openings, saving time and reducing frustration in the field. The durable, weighted probe is guided by a high-strength, flexible cable, ensuring smooth operation even in narrow, angled, or irregular shafts.

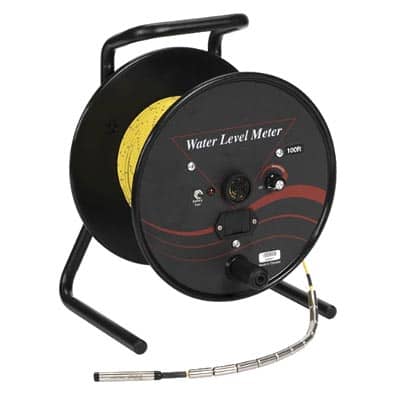

Water Level Meter

The Water Level Meter is designed to measure groundwater levels, especially in small diameter tubes and piezometers, or where a flexible assembly is needed to get past downhole instrumentation. Units include a 3/8" dia. x 2.75" (10 x 70mm) stainless steel probe with 10 stainless steel weights, weighing 6.14oz. (174g). This probe is ideal for the majority of water level measurement applications. Measurements are traceable to national standards, and each unit is calibrated at a National Institute of Standards and Technology (NIST)-certified lab. The flexible weight assembly allows easy well access and keeps the cable hanging straight in monitoring wells. The coaxial cable used has a durable polyethylene jacket with permanent markings precisely etched on the cable every 1/100ft. A braided copper outer conductor gives flexibility, and a stranded stainless steel central conductor gives strength. It is easy to repair and splice.

Water Evaluations equipment is used to analyze the physical and chemical properties of water. These tests are important for assessing water quality, environmental impact, and its suitability for construction and geotechnical applications.
