Automatic Compression-Flexural Cement Testers Price in Bangladesh

Automatic Compression-Flexural Cement Testers are designed for dependable material evaluation, and Automatic Compression-Flexural Cement Testers Price in Bangladesh is a relevant choice for laboratories seeking efficient and consistent cement strength testing. This equipment supports compression and flexural testing applications, helping professionals evaluate the mechanical performance of cement specimens with confidence.

Designed for professional laboratory environments, the tester offers convenient automatic operation that can reduce manual effort and support consistent testing procedures. Its practical design makes it suitable for construction laboratories, quality control departments, research facilities, educational institutions, and material testing centers.

The equipment is built to provide stable performance during regular laboratory use. Durable construction helps support long term operation, while the user friendly controls make testing procedures easier to manage. Automatic functionality can also improve workflow efficiency by providing a smoother testing process and helping operators maintain consistent testing practices.

Automatic Compression-Flexural Cement Testers are particularly useful for quality assurance and construction material research where dependable test results are essential. By supporting both compression and flexural strength evaluation, the equipment provides a versatile testing solution for laboratories working with cement and related construction materials.

Selecting reliable cement testing equipment can contribute to better quality control, efficient laboratory operations, and consistent material assessment. With practical functionality, robust construction, and convenient operation, these testers are a suitable solution for professionals who require dependable equipment for cement strength testing in Bangladesh.

PILOT PRO is the best choice for Qualtiy Control laboratories to carry out a high throughput of routine failure tests including compression, flexure and indirect tensile tests.

PILOT PRO introduces new features and capabilities that will revolutionize the operations of any progressive construction quality testing laboratories.

LinkLAB is CONTROLS’ new proprietary Laboratory Connectivity Package.

It allows your PILOT PRO to be a connected part of your laboratory infrastructure by taking inputs from any number of ancillary measuring systems and devices increasing efficiency and eliminating transposing errors.

Frames
These machines, featuring a very rigid four columns frame, have been designed for the testing of the cement prism either in compression or in flexure.
Three versions are available:

65-L27P1x
models, double testing chamber, 15/300 kN cap., inbuilt flexural jig for 40x40x160 cement prisms and compression apparatus for portions of 40x40x160 mm prisms broken in flexure.
Conforming to EN 196-1, 1015-11.

65-L28P1x
models, double testing chamber, 15/300 kN cap., fitted with round platens for testing in compression and flexion cement, mortar, resins and other materials.
Conforming to EN 196-1, 1015-11, ASTM C109, C348, C349 using the suitable accessories.

65- L18P1x
models, 300 kN cap., fitted with round platens for testing cement, mortar, resins and other materials and other materials. Conforming to EN 196-1, 1015-11, ASTM C109, C349 using the suitable accessories.

All models are fitted with high accuracy load cell/s.

Models fitted with compression platens 165 mm dia. (L28Pxx,L18Pxx) have a vertical span of 200 mm hence can house all standard accessories for cement and mortar testing (see accessories) and furthermore can be used to test other specimens directly on the standard compression platens adjusting, if necessary, the vertical daylight, with the suitable distance pieces (see accessories). Compression platens can be supplied complete with Platen surface hardness certificate.

PILOT PRO, Automatic power and control system

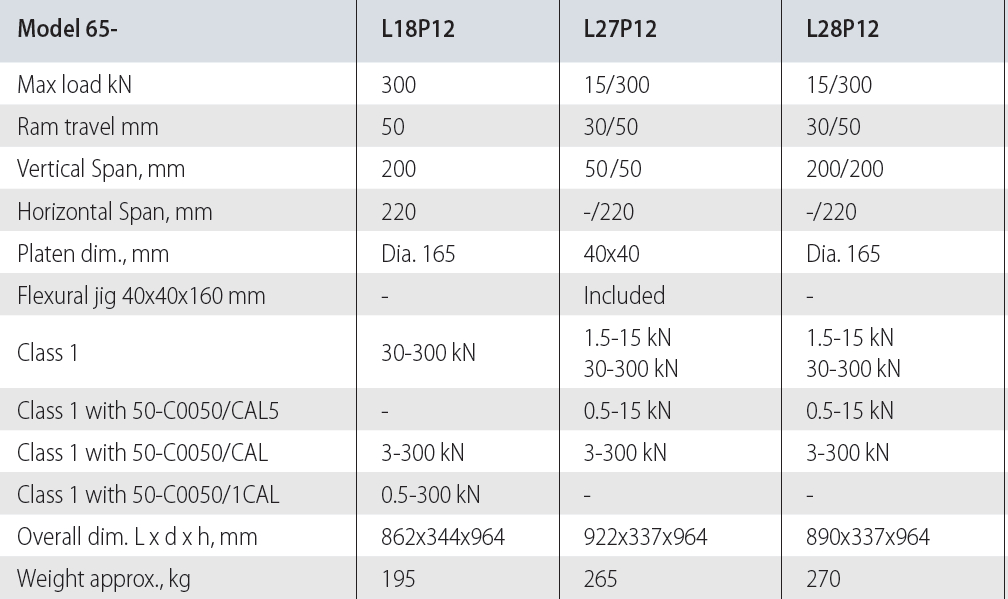

See technical specifications.

Safety features
Includes: Max. pressure valve to avoid machine overloading; piston travel limit switch; emergency stop button; front door and rear transparent fragment guard on request.

Key Features: Automatic Compression-Flexural Cement Testers

Smart automatic and connected Power and Control System for standard failure testing.
PILOT PRO is the best choice for Qualtiy Control laboratories to carry out a high throughput of routine failure tests including compression, flexure and indirect tensile tests.

Huge boost in efficiency and error elimination: LinK-LAB – Integrated testing station solution for seamless connection and data inputs from many ancillary devices for dimensional measurement, weight, bar code, etc.
Automatic – time saving: test-cycle automation maximizes productivity and ensures tests are performed accurately according to pre-set methods, eliminating operator variables.
Highly accurate and energy saving: Our DC motor technology quietly and efficiently delivers super accurate load control at both low-speed and low-loads.
Intuitive, quick and simple operation: The integrated control system features an intuitive 7” color graphical display, which works like a tablet or smart-phone, and makes PILOT PRO quick and simple to operate.
Standards compliant – peace of mind: Hardware and firmware are in total compliance with all the main international testing standards
Multilingual functionality: The system is available in multiple languages and is fully compatible with non-Latin characters for Chinese, Cyrillic (and more).

Hydraulics

Dual-stage pump: centrifugal low pressure for fast approach automatically switches to radial multi-piston high pressure for loading
DC motor, 720W, 50-60Hz
Maximum working pressure 700 bar
Load/unload valve
Second/third frame selection valve available as option

Hardware

524,000 points high-resolution/stability analog channels
3 channels for load sensors
Control frequency 250 Hz
Sampling frequency 250 Hz
5.1”, 800 x 480 pixel, 16 M colors, icon-driven capacitive sensing touchscreen graphic display
Unlimited storage capacity for test data on internal 16 GB SD card
USB port for test data storage on external USB memory stick and for firmware upgrade
Ethernet port for PC / Internet /network communication
Optional integrated graphic printer including Load-Time plot
RS 232 port for data downloading in ASCII format

Firmware

Execution of compression, flexure, indirect tensile, ACV tests in automatic mode with load rate controlled by a closed-loop P.I.D. system
Execution of loading ramps with the possibility to manually increase or decrease the test speed during the test
Pause command to maintain steady load can be enabled at a pre-set value before the test or as required while testing
Simultaneous display of load, specific load, actual load rate, load/time graph
Saving of the specimen failure type (to EN or ASTM) in the test results
Download data to internal printer (optional) or to PC via RS 232 port or to USB memory stick
PC / network communication via Ethernet
Multi-coefficient linearization of the calibration curve for better accuracy at low loads thus avoiding the use of a second pressure transducer
Recording facility for up to 9 test profiles for each channel including: type of test (e.g. compression, flexural, indirect tensile), specimen size and shape, load rate, test standard and other general information. Each one of the recorded test profiles can be recalled automatically to save time
Improved PID algorithm and multi PID selection. Up to 3 different PID settings can be tuned for a variety of materials (e.g. cylinder with neoprene pads, low strength specimens) and test methods (e.g ACV, flexure, indirect tensile).
Compatible with the newly released Datamanager software, tailored for construction material testing laboratories, for real-time data acquisition, display and management
Peripheral devices integration with Link-LAB
Automatic load measurement verification procedure, by connecting suitable load cells and our digital readout unit to PC
Language selection (including Cyrillic and Chinese)
Unit selection (kN, ton, lbf)
USB port for firmware upgrade and safe backup of the original configuration data (PID, calibration, etc.), in case of loss and/or data corruption. The restore of the machine to the factory settings is easy avoiding the need of any technical support.

Code

Description

65-L18P12

PILOT PRO automatic compression machine, 300 kN cap. for compression tests on cement, mortar, resin and other materials. Conforming to EN 196-1, 1015-11, ASTM C109, C349 using the suitable accessories. - High-stiffness 4 columns frame - High accuracy load cell for load measurement - Compression platens 165mm diameter - Dayligths: horizontal 220mm, vertical 200mm - Piston travel 50 mm - Limit switch preventing piston overtravel - Load measurement accuracy: class 1 to EN 12390-4 / class A to ASTM E74 starting from 30kN. Special calibration from 3 kN available on request - Supplied complete with traceable calibration certificate for load measurement accuracy - Optional transparent rigid safety guard - AUTOMAX PRO automatic control system - PID Closed loop control of the load rate - High control and data sampling frequency: 250 Hz- Variable speed permanent magnet DC motor for superior performances at low load rates and low load values - 7", 800 x 480 pixels, 16 M colors, icon-driven capacitive sensing touchscreen graphic display - RS232 serial port for data transmission (including load/time values for graph plot) in ASCII format - USB port for data storage, export to PC and firmware upgrade - Ethernet port for PC / Internet /network Communication. Integrated printer available on request - 16 GB Internal permanent memory on SD card - 524000 points high-resolution/stability channels 230V/50-60Hz/1Ph

65-L18P14

65-L27P12

PILOT PRO automatic double chamber compression machine, 15/300 kN cap. for compression and flexure tests on cement/mortar prisms 40x40x160mm.Conforming to EN 196-1, 1015-11. - High-stiffness 4 columns frame - High accuracy load cells for load measurement - Incorporating load devices: 40x40mm platens and flexural jig - Dayligths: horizontal 220mm, vertical 50/50mm - Piston travel 30/50mm - Limit switch preventing piston overtravel - Load measurement accuracy: class 1 to EN 12390-4/ class A to ASTM E74 starting from 30kN for 300kN chamber and from 1.5kN for 15kN chamber. Special calibration from 3kN for 300kN chamber and from 0.5kN for 15kN chamber available on request - Supplied complete with traceable calibration certificate for load measurement accuracy - Optional transparent rigid safety guard - AUTOMAX PRO automatic control system - PID Closed loop control of the load rate - High control and data sampling frequency: 250 Hz- Variable speed permanent magnet DC motor for superior performances at low load rates and low load values - 7", 800 x 480 pixels, 16 M colors, icon-driven capacitive sensing touchscreen graphic display - RS232 serial port for data transmission (including load/time values for graph plot) in ASCII format - USB port for data storage, export to PC and firmware upgrade - Ethernet port for PC / Internet /network Communication. Integrated printer available on request - 16 GB Internal permanent memory on SD card - 524000 points high-resolution/stability channels 230V/50-60Hz/1Ph

65-L27P14

65-L28P12

PILOT PRO automatic double chamber compression machine, 15/300 kN cap. for compression and flexure tests on cement, mortar, resin and other materials. 230 V, 50-60 Hz, 1 Ph

65-L28P14

PILOT PRO automatic double chamber compression machine, 15/300 kN cap. for compression and flexure tests on cement, mortar, resin and other materials. 110 V, 60 Hz, 1 Ph

ASTM C109
ASTM C348
ASTM C349
EN 196-1
