These Multipurpose compression / flexure testers have been designed for various applications in which a limited maximum load is requested, together with a large testing space. They are suitable to determinate compressive strength on lightweight concrete, soil-cement specimen, high strength cement and refractory specimens.
The large testing space is ideal for performing, with the suitable accessories, splitting tests and flexural tests on concrete specimens.

They are available in the two different versions:

single compression station, 500 kN or 600 kN cap.:
for compression tests on low strength specimens. The Class 1 accuracy can be extended from 1% of testing machine full scale with special calibration procedures (see Upgrading Option and Technical Specifications).

double station model, 600/15 kN or 500/15 kN cap.:
extends the possible applications to flexural tests on cement and com­pression tests on low strength specimens. The Class 1 accuracy can be extended with special calibration procedures (see Upgrading Option and Technical Specifications).

Frames
High rigidity solid one piece steel frame. Spherical seat allows free alignment at the initial contact with the specimen.

Compression platens

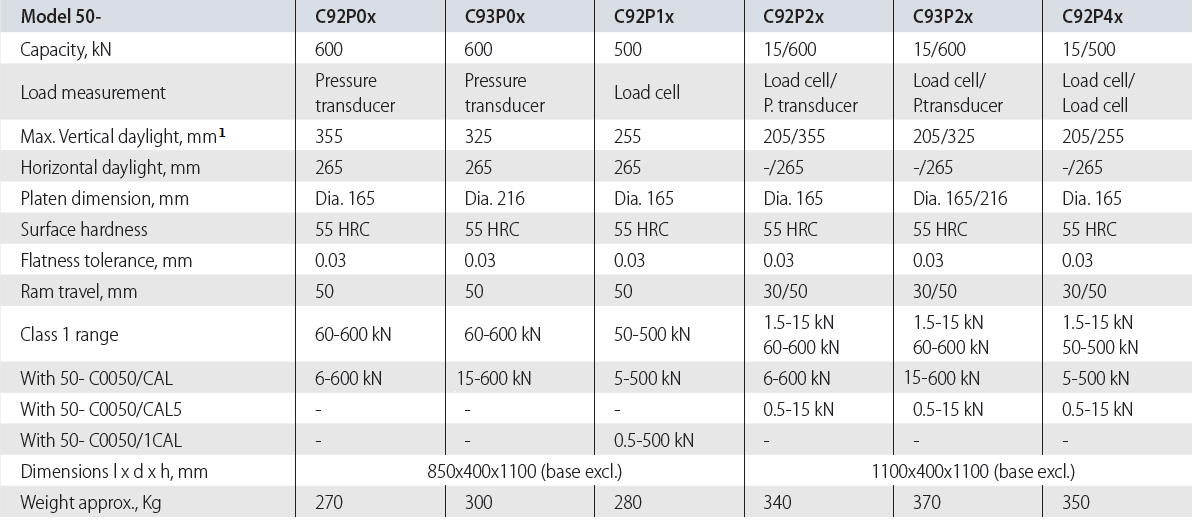

See table. Traceable certificate of surface hardness available on request.

PILOT PRO, Automatic power and control system
See technical specifications.

Safety features
Includes: Max. pressure valve to avoid machine overloading; piston travel limit switch; emergency stop button;  front door and rear transparent fragment guard on the compression station. Fragment guard for flexure station is available as optional (see Accessories).

PILOT PRO AUTOMATIC POWER AND CONTROL SYSTEM

Hydraulics

• Dual-stage pump: centrifugal low pressure for fast approach automatically switches to radial multi-piston high pressure for loading
• DC motor, 720W, 50-60Hz
• Maximum working pressure 700 bar
• Load/unload valve
• Second/third frame selection valve available as option

Hardware

• 524,000 points high-resolution/stability analog channels
• 3 channels for load sensors
• Control frequency 250 Hz
• Sampling frequency 250 Hz
• 5.1”, 800 x 480 pixel, 16 M colors, icon-driven capacitive sensing touchscreen graphic display
• Unlimited storage capacity for test data on internal 16 GB SD card
• USB port for test data storage on external USB memory stick and for firmware upgrade
• Ethernet port for PC / Internet /network communication
• Optional integrated graphic printer including Load-Time plot
• RS 232 port for data downloading in ASCII format

Firmware

• Execution of compression, flexure, indirect tensile, ACV tests in automatic mode with load rate controlled by a closed-loop P.I.D. system
• Execution of loading ramps with the possibility to manually increase or decrease the test speed during the test
• Pause command to maintain steady load can be enabled at a pre-set value before the test or as required while testing
• Simultaneous display of load, specific load, actual load rate, load/time graph
• Saving of the specimen failure type (to EN or ASTM) in the test results
• Download data to internal printer (optional) or to PC via RS 232 port or to USB memory stick
• PC / network communication via Ethernet
• Multi-coefficient linearization of the calibration curve for better accuracy at low loads thus avoiding the use of a second pressure transducer
• Recording facility for up to 9 test profiles for each channel including: type of test (e.g. compression, flexural, indirect tensile), specimen size and shape, load rate, test standard and other general information. Each one of the recorded test profiles can be recalled automatically to save time
• Improved PID algorithm and multi PID selection. Up to 3 different PID settings can be tuned for a variety of materials  (e.g. cylinder with neoprene pads, low strength specimens) and test methods (e.g ACV, flexure, indirect tensile).
• Compatible with the newly released Datamanager software, tailored for construction material testing laboratories, for real-time data acquisition, display and management
• Peripheral devices integration with Link-LAB
• Automatic load measurement verification procedure, by connecting suitable load cells and our digital readout unit to PC
• Language selection (including Cyrillic and Chinese)
• Unit selection (kN, ton, lbf)
• USB port for firmware upgrade and safe backup of the original configuration data (PID, calibration, etc.), in case of loss and/or data corruption. The restore of the machine to the factory settings is easy avoiding the need of any technical support.

Code

Description

50-C92P02

PILOT PRO COMPACT-Line automatic compression machine, 600 kN cap. for testing cement, mortar, resin, hydraulically bound mixtures and other materials. 230 V, 50-60 Hz, 1 Ph.

50-C92P04

PILOT PRO COMPACT-Line automatic compression machine, 600 kN cap. for testing cement, mortar, resin, hydraulically bound mixtures and other materials. 110 V, 60 Hz, 1 Ph.

50-C92P22

PILOT PRO COMPACT-Line automatic compression machine double chamber 600/15 kN cap. for testing cement, mortar, resin, hydraulically bound mixtures and other materials. 230V, 50-60 Hz, 1 Ph.

50-C92P24

PILOT PRO COMPACT-Line automatic compression machine double chamber 600/15 kN cap. for testing cement, mortar, resin, hydraulically bound mixtures and other materials. 110V, 60 Hz, 1 Ph.

50-C92P12

PILOT PRO COMPACT-Line automatic compression machine, 500 kN cap. for testing cement, mortar, resin, hydraulically bound mixtures and other materials. 230 V, 50-60 Hz, 1 Ph.

50-C92P14

PILOT PRO COMPACT-Line automatic compression machine, 500 kN cap. for testing cement, mortar, resin, hydraulically bound mixtures and other materials. 110 V, 60 Hz, 1 Ph.

50-C92P42

PILOT PRO COMPACT-Line automatic compression machine double chamber 500/15 kN cap. for testing cement, mortar, resin, hydraulically bound mixtures and other materials. 230 V, 50-60 Hz, 1 Ph.

50-C92P44

PILOT PRO COMPACT-Line automatic compression machine double chamber 500/15 kN cap. for testing cement, mortar, resin, hydraulically bound mixtures and other materials. 110 V, 60 Hz, 1 Ph.

50-C93P02

PILOT PRO COMPACT-Line automatic compression machine, 600 kN cap. for testing cement, mortar, resin, hydraulically bound mixtures and other materials. 230 V, 50-60 Hz, 1 Ph.

50-C93P04

PILOT PRO COMPACT-Line automatic compression machine, 600 kN cap. for testing cement, mortar, resin, hydraulically bound mixtures and other materials. 110 V, 60 Hz, 1 Ph.

50-C93P22

PILOT PRO COMPACT-Line automatic compression machine double chamber 600/15 kN cap. for testing cement, mortar, resin, hydraulically bound mixtures and other materials. 230 V, 50-60 Hz, 1 Ph.

50-C93P24

PILOT PRO COMPACT-Line automatic compression machine double chamber 600/15 kN cap. for testing cement, mortar, resin, hydraulically bound mixtures and other materials. 110 V, 60 Hz, 1 Ph.

• ASTM C109
• ASTM C348
• ASTM C349
• EN 13286-41
• EN 196-1
