Cement Compression and Flexural Machines price in Bangladesh

Cement compression and flexural machines are designed for efficient material strength evaluation, making Cement Compression and Flexural Machines price in Bangladesh a relevant choice for laboratories seeking dependable testing equipment. These machines support both compression and flexural testing, allowing professionals to assess cement strength and performance for quality control, research, and construction material analysis.

Designed for professional laboratory environments, the machines provide a stable and practical setup for controlled testing procedures. Their user friendly operation helps technicians manage testing efficiently while maintaining consistent working conditions. They are suitable for construction laboratories, research facilities, quality control departments, educational institutions, and material testing centers.

Durable construction helps these machines withstand regular laboratory use while providing dependable performance. A robust structure supports stability during testing, while practical controls and functional design make routine testing more convenient. Their reliable construction also contributes to long term usability and efficient laboratory workflows.

Cement compression and flexural machines offer valuable testing flexibility by supporting different strength evaluation requirements within a single testing solution. They can assist professionals with material development, quality assurance, inspection, and research applications where dependable cement testing is essential.

Selecting suitable cement testing equipment can improve laboratory productivity, testing consistency, and quality control practices. With durable construction, practical functionality, and reliable operation, these machines provide an effective solution for professionals involved in cement strength testing and construction material evaluation in Bangladesh.

These Multipurpose compression / flexure testers have been designed for various applications in which a limited maximum load is requested, together with a large testing space. They are suitable to determinate compressive strength on lightweight concrete, soil-cement specimen, high strength cement and refractory.

The large testing space is ideal for performing, with the suitable accessory, splitting tests and flexural tests on concrete specimens. The pedestal is not included and has to be ordered separately. See accessories.

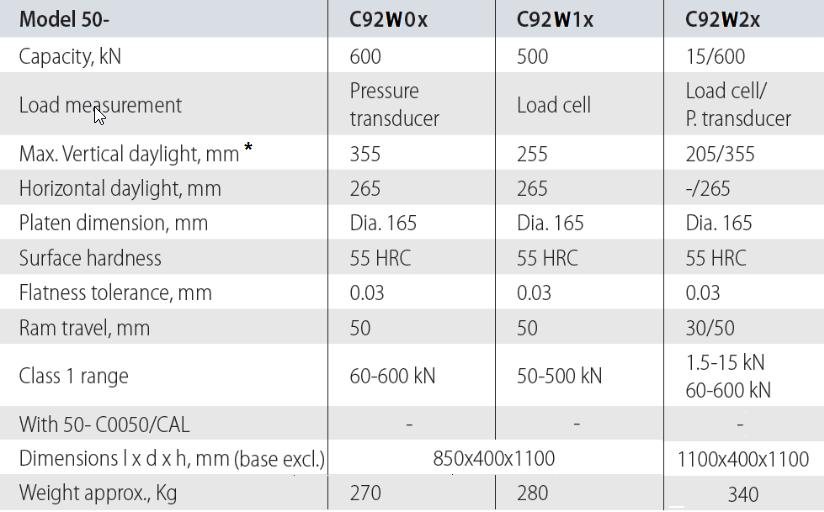

They are available in the two different versions:

Single compression station, 500 kN or 600 kN cap.:

For compression tests on low strength specimens. The Class 1 accuracy can be extended from 1% of testing machine full scale with special calibration procedures (see Technical Specifications).

Double station model, 600/15 kN cap.:

Extends the possible applications to flexural tests on cement and compression tests on low strength specimens. The Class 1 accuracy can be extendedwith special calibration procedures (see Technical Specifications).

Frames and compression platens:

High rigidity solid one piece steel frame. Spherical seat allows free alignment at the initial contact with the specimen. For compression platens see Technical Specifications. Pedestal not included. See accessories.

WIZARD AUTO Automatic Power and Control system

Two channels for load sensors
Wide graphic display 128 x 80 pixel
Graphic printer available as option
AC motor fitted with VFD INVERTER device: high efficiency, low consumption, silent operation
Dual stage pump for fast approach and automatic switch to high pressure for loading

The WIZARD AUTO can be factory fitted with a internal serial printer. See accessories.

Safety features
Includes: pressure valve to avoid machine overloading; piston travel limit switch; emergency stop button; front door and rear transparent guard.

WIZARD AUTO is CONTROLS new standard automatic Quality Control machine for compression and flexural testing and includes many new features and enhancements to improve the user-friendliness, efficiency, operator comfort and energy savings.

QC testing performance has just taken a step change improvement with CONTROLS abandoning manual test control and now features automatic closed-loop PID control of loading-rate using VFD inverter-technology control of the high specification AC motor.

Wizard Auto automatically and accurately performs tests at the correct test speed, ensuring compliance to Standards and with no effect due to operator variables.

Multipurpose machine ideal for Central laboratories, for testing Cement, Mortars, Resins, Refractory, Lightweight concrete, Soil-cement specimens etc;

WIZARD AUTO is the perfect solution to ensure total certainty of testing accuracy and strict conformity to international Standards.In fact being an automatic system it allows:

Reduced opportunities for operator errors, improving accuracy of results and repeatability
Easy-to-use: even for operators with limited expertise.
Conforming to Standards: the machine automatically performs the test at correct test speed. Conformance to Standards can be easily proven.
High performance: high speed pump closes the daylight above the specimen at the fasted speed allowing a very high throughput of tests.
Operator comfort due to the significant noise reduction.
Energy saving, with 50% reduction in energy consumption.

WIZARD AUTO AUTOMATIC POWER AND CONTROL SYSTEM

Hydraulics

Max pressure 700 bar
Power 750 W
Dual stage pump: low pressure/high delivery for fast piston approach and high pressure/low delivery for loading.
AC motor fitted with VFD inverter device featuring high efficiency, reduction of power consumption and silent operation.
Second frame optional facility using valve selector.

Hardware

Two 16 bit analog channels for load sensors
Wide graphic display 128 x 80 pixel
Sampling rate 50 Hz
Internal memory
RS 232 port for data download (including load/time graph points) to PC in ASCII format
Integrated printer as optional. See accessories

Firmware

Real time display of load and stress
Automatic application of the selected load rate
Execution of loading ramps with the possibility to manually increase or decrease the test speed during the test
Peak detection and saving
Language selection
Multi-coefficient linearization of the calibration curve for better accuracy at low loads
Multiple units: Lbf / Ton / kN.

ASTM C109
ASTM C1609
ASTM C348
ASTM C349
EN 196-1
