Compression-Flexure Cement Testing Frames Price in Bangladesh

Reliable Frames for Accurate Cement Strength Testing

Compression-flexure cement testing frames are designed for dependable strength evaluation, making Compression-Flexure Cement Testing Frames Price in Bangladesh a relevant choice for laboratories seeking reliable testing equipment. These frames support compression and flexural testing applications, helping professionals assess the mechanical performance of cement specimens for quality control and research.

Designed for professional laboratory environments, the testing frames provide a stable structure for conducting controlled material tests. Their practical design helps technicians position specimens conveniently and perform testing procedures efficiently. The equipment is suitable for construction laboratories, research facilities, quality control departments, educational institutions, and material testing centers.

Durability is essential for testing frames used in demanding laboratory applications. Robust construction helps provide stability during testing and supports dependable performance through regular use. Carefully designed components can also contribute to easier operation, maintenance, and long term usability.

Compression-flexure cement testing frames are valuable for laboratories that require flexible testing capabilities. By supporting different strength evaluation procedures, they help professionals analyze cement performance and maintain effective quality assurance practices. The stable testing structure also helps promote consistent test conditions and reliable laboratory workflows.

Choosing suitable cement testing equipment can improve operational efficiency, testing consistency, and material quality assessment. With sturdy construction, practical usability, and dependable performance, these testing frames provide an effective solution for professionals involved in cement testing and construction material analysis in Bangladesh.

Four columns robust frame with single or double test chamber. Simple effect ram with electrical limit switch.
All the models, single or double test chambers, are fitted with 165 mm dia. round compression plates and have to be completed with the suitable accessory. All frames are fitted with precision load cell for load measurement.

Connection to control consoles
The 15 kN load pistons of the double test chamber model 65-L28Z10 and single chamber model 65-L58Z10 connected to Pilot and Automax Control consoles, require the 65-L1400/X5 pressure regulator which.

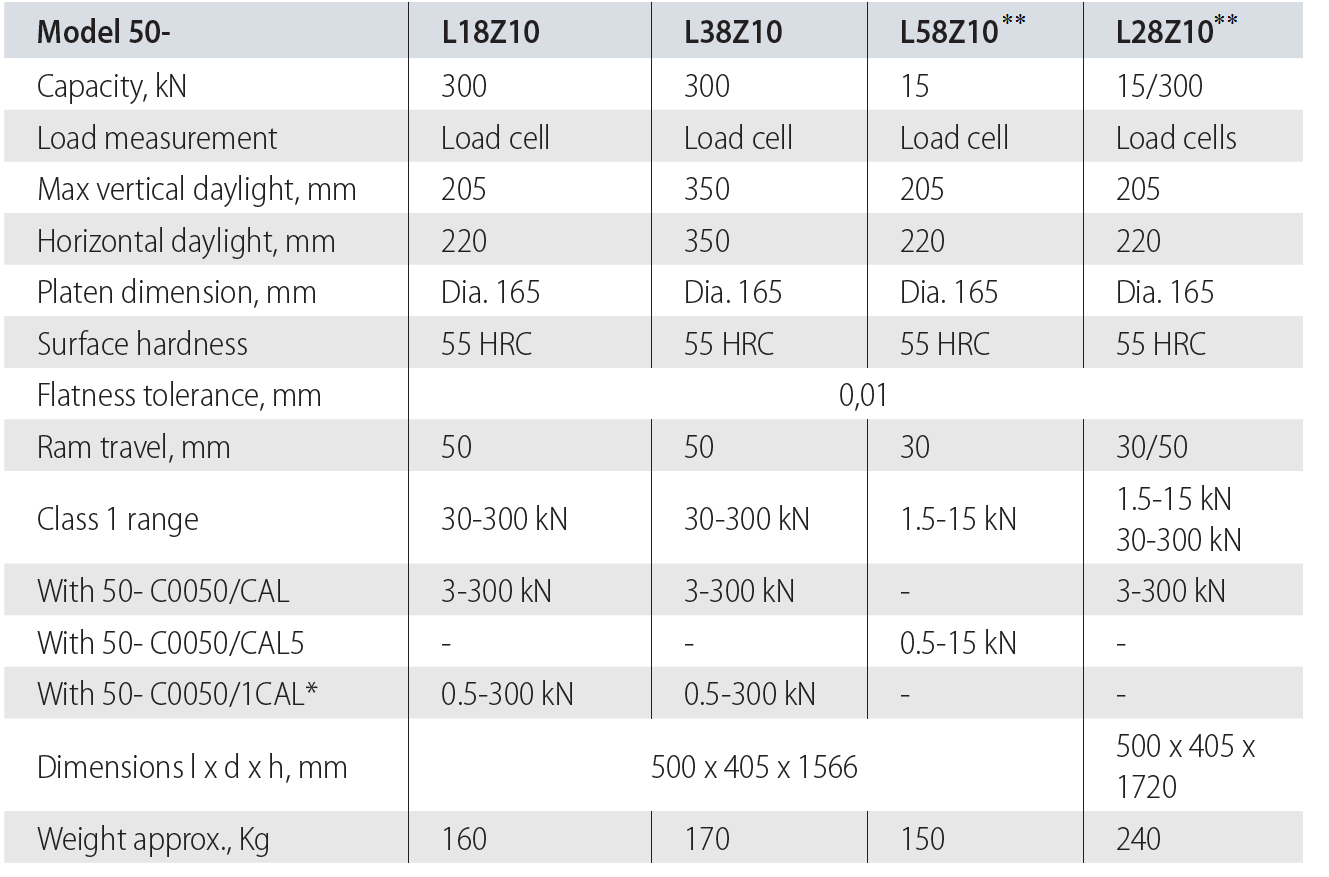

Machine/Frames precision Class. EN 12390-4, ASTM E74
All frames, when connected to a suitable control console, can be calibrated to Class 1 starting from 10% of load scale as specified in the specification table. By special calibration procedure, it is possible to obtain Class 1 starting from 3 to 300 kN (calibration code 50-C0050/CAL) and starting from 0.5 to 15 kN (calibration code 50-C0050/CAL5). This option has to be specified at time of order.

Safety features
Model 65-L17Z10 include a cylindrical transparent fragment guard. All the other models can be completed with the relevant protection. All models are fitted with ram travel limit switch.

Code

Description

65-L18Z10

300 kN cap. hydraulic frame for compression tests on cement, mortar, resin and other materials. Conforming to EN 196-1, 1015-11, ASTM C109, C349 using the suitable accessories.

65-L28Z10

300/15 kN cap. double chamber hydraulic frame for compression and flexure tests on cement, mortar, resin and other materials. Conforming to EN 196-1,1015-11, ASTM C109, C348, C349 using the suitable accessories.

65-L38Z10

300 kN cap. hydraulic frame for compression tests on cement, mortar, resin and other materials. Conforming to EN 196-1, 1015-11, ASTM C109, C349 using the suitable accessories.

65-L58Z10

15 kN cap. hydraulic frame for compression tests on low-strength materials or flexure tests on prisms made of cement, mortar, resin, and other materials. Conforming to EN 196-1, 1015-11, ASTM C109, C348, C349 using the suitable accessories.

ASTM C109
ASTM C348
ASTM C349
EN 196-1
